    商品の詳細

    電圧: 220v、 380v 原産地: 中国(本土) 銘柄: floworld
    土台: 店の窓 モデル番号: 1530-620 速度: 10.8-17.1m/s
    刃材料: ステンレス タイプ: 農業温室 認証: CE
    力: 0.55kw-1.5kw 電流のタイプ: acおよびdc 空気容積: 49530m³/h
    タイプ: 軸流ファン カテゴリ: 換気ファン 取付: フリースタンディング

    包装

    包装: カートン

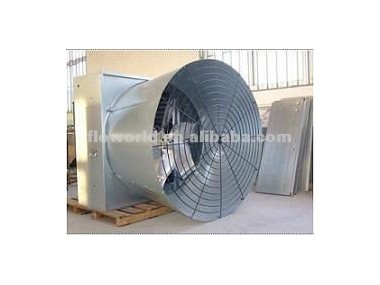

    chicken house fan

    The fan blade is stainless steel , big air volume, without distortion, no broken, attractive and durable. (adopting aluminum fan blade in the past, which had some problems caused after long time working of metal in the factory cooling, for example broken and air volume decreasing).

    1.Adopts automatic belt tensioner which can adjust up and tight so that the belt can’t loose and dro .

    2.The belt pulley adopts more stiffening rib and processed by sandblasting, become attractive, eliminate the internal stress and increase own strength efficiently;

    3.France imported axletree(bearings), high intensity, low noise, long service life.

    4.Variety sizes of shape and install conveniently.Size of shape(blade): 620mm(24″),780mm(30″),

    830mm(32″),900mm(35″),1000mm(39″),1100mm(43″),1220mm(48″),1380mm(54″),1530mm(60″)nine kinds.

    5.We can manufacture A type belt or B type belt according to the sale of dealer, and satisfy different needs of customers.

    6.The  fans were adjusted by advanced computer balancing tester, to smooth operating, reduce noise,enhance stability, extend service life.

    鶏家の換気ファン仕入れ・メーカー・工場 鶏家の換気ファン仕入れ・メーカー・工場 鶏家の換気ファン





    Technical Parameter:

    Model specifications

    Diameter biades- mm

    Blades rotational speed
    rpm

    Motor rotational speed
    rpm

    Air flow m/h

    Total pressure

    Noise decibels

    import power

    Rated voltage

    High

    Width

    Thick

    620(24")

    500

    1400

    1400

    5700

    55

    ≤70

    250

    380

    620

    620

    400

    780(30")

    710

    960

    960

    23000

    75

    ≤70

    750

    380

    780

    780

    420

    830(32")

    720

    660

    1400

    20000

    60

    ≤60

    550

    380

    830

    830

    400

    900(35")

    750

    630

    1400

    22000

    65

    ≤65

    370

    380

    900

    900

    400

    1000(39")

    900

    610

    1400

    25000

    70

    ≤70

    750

    380

    1000

    1000

    400

    1100(43")

    1000

    600

    1400

    32500

    70

    ≤70

    750

    380

    1100

    1100

    400

    1220(48")

    1100

    460

    1400

    38000

    73

    ≤70

    750

    380

    1220

    1200

    400

    1380(54")

    1250

    439

    1400

    44000

    56

    ≤70

    1100

    380

    1380

    1380

    400

    1530(60")

    1400

    325

    1400

    55800

    60

    ≤70

    1500

    380

    1530

    1530

    400
