| 電圧: | 380ボルト、50 ｈｚ | 原産地: | 中国(本土) | 銘柄: | shuliy | 製品容量: | 97% | モデル番号: | sl | 重量: | 3123に6060キログラム | 自動等級: | 自動 | 力(W): | 7.5kw | 保証: | 一年 | 条件: | 新しい | 認証: | ce、iso | 次元(L*W*H): | 6725*1236*1265ミリメートル | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | ココナッツオイルフィルタープレス: | ベルトフィルタープレス | 油圧フィルタープレス: | プレスフィルター | フィルタープレス機: | 膜フィルタープレス | 自動フィルタープレス: | プレートとフレームフィルタープレス | 商工フィルタープレス: | ネジフィルタープレス | 真空ベルトフィルタープレス: | フィルタープレスメーカー |
包装
| 包装: | 木製ケース |
When you decide to purchase our machine,please tell me the information of the following ,so that I recommend the suitable machine for you. Thank you.
1.the raw material.
2.Filter area.
3.the material of the machine that you need.
4. manual or automatic that you need .
Introduction of this machine: (This machine is multi-purpose in all kinds of industry )
Filter press as a solid liquid separation device, used in industrial production has a long history, it has good separation effect, wide adaptability, especially for thin stick the separation of content, has its unique superiority.
Shuliy brand series filter press is a kind of interval solid-liquid separation equipment, is a filter plate, filter frame, plate and frame type) or by the filter plate (van) to arrange a filter chamber, under the effect of feeding pump of pressure, the material
liquid into
the filter chamber,
through the filter cloth filter to separate solid and liquid.
Widely used with the chemical industry, dyestuff, oil, ceramics, pharmaceutical,
sugar, food, sugar, starch, and metallurgy, paint, coal, metallurgy and sewage treatment industries, etc.
Product specifications have 200, 320, 450, 200, 800, 1000, 1250, 1000 type, the filtering area of 0.5 m2 to 2000 m2, the structure of the filter plate with plate and frame type, van, diaphragm ballast type; Heat resistant temperature -
20 °C, 120 °C, the filtrate out way with free flow, undercurrent, wash, do not wash; Compression methods are: manual, mechanical compaction, hydraulic pressure clamping, automatic pressure maintaining, automatic drawing board. Filter pressure from 0.2 Mpa to 2.0 Mpa,
plate and frame materials have cast iron,
reinforced polypropylene,
glass fiber, aluminum alloy, high temperature resistant polypropylene, stainless steel, etc. To choose from.
Usage :
Widely used in petroleum, chemical industry, metallurgy, coal, medicine, light industry, food, environmental protection, textile, clay and other industries. Used for all kinds of suspension of the solid-liquid separation, wide application scope.
For example : chamber type filter press model SL-YL800 type. The parameters is :
Filter area(m2) | volume L | Outer frame size(mm) | Filter plate thickness(mm) | Filter plate number
| of the filter chamber | thickness (mm) | Size (mm) | Power (KW) | pressure Mpa | Weight (kg) |
30 | 480 | 800*800 | 60 | 29 | 30 | 30 | 3675*1236*1265 | 3 | 0.8 | 2740 |
40 | 640 | 800*800 | 60 | 39 | 40 | 30 | 4285*1236*1265 | 3 | 1.0 | 3123 |
50 | 800 | 800*800 | 60 | 46 | 50 | 30 | 4895*1236*1265 | 3 | 1.4 | 3506 |
60 | 960 | 800*800 | 60 | 59 | 60 | 30 | 5505*1236*1265 | 3 | 1.8 | 3970 |
70 | 1120 | 800*800 | 60 | 69 | 70 | 30 | 6115*1236*1265 | 3 | 2.0 | 4365 |
80 | 1280 | 800*800 | 60 | 79 | 80 | 30 | 6725*1236*1265 | 3 | 4757 | |
90 | 1440 | 800*800 | 60 | 89 | 90 | 30 | 7335*1236*1265 | 3 | 5230 | |
100 | 1600 | 800*800 | 60 | 99 | 100 | 30 | 7945*1236*1265 | 3 | 5632 |

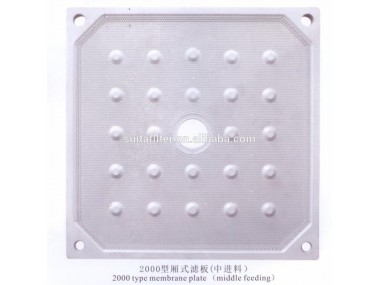

The machines show :
