| 原産地: | 中国(本土) | 銘柄: | boocca | モデル番号: | Bf-km | 中型材料: | PP | タイプ: | RO | 材料: | Cs/ss304/ss316 | タイプ: | クイックオープンキャップ | 証明書: | :2008; ce |
包装
| 包装: | 木製ケース |
Description

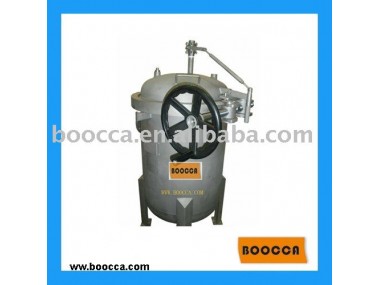

Diifferent with the tranditional bag filter housing,V-clamp filter housing using a V clamp to fix the top cover and the housing body instand of bolts.
It is very convenient,and the cover can auto quickly open when you just need to turn round the handle.
Features and Advantage
1.Operating pressure: 7 bar
2.Fitting bag: 2# filter bag
3.Placed bag number: 2~5 bag.
4. Flow: 90~225 CBM/h
5.Material: SS 304 or SS 316
Specification
Model | Bag No. | Dimension (mm) | Max. flow (m3/h) | Flange |
BF-KM3 | 3 | φ500 | 135 | 3”-4” |
BF-KM4 | 4 | φ558 | 180 | 3”-6” |
BF-KM6 | 6 | φ660 | 270 | 3”-6” |
BF-KM8 | 8 | φ760 | 360 | 4”-8” |
