| 原産地: | 中国(本土) | 銘柄: | トップス | モデル番号: | GE188F | 重量: | 36 | 認証: | ce、cqc、iso... | 使用法: | 発電機 | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 条件: | 新しい | 燃料: | ガソリン | 保証: | 一年 | 打撃: | 4打撃 | シリンダー: | 単一シリンダー | 次元(L*W*H): | 485 × 415 × 450ミリメートル | 冷たい様式: | Air-cooled | 開始: | 電気開始 | エンジンタイプ: | 4ストローク、 25℃inclinde、 単気筒空冷式。 | 潤滑システム: | スプラッシュ | 点火システム: | t.c.i | 始動システム: | リコイル開始/電気始動 | 燃料タイプ: | 無鉛ガソリン | ボア- storke (ミリメートル): | 389cc | マックス。電源( hp/rpm): | 13/3600 | 最大トルク( n. m/rpm): | 26。/ 2500 | オイル容量( l): | 1.1 | 燃料タンク容量( l): | 6.5 |
包装
| 包装: | カートン。 |
GASOLINE ENGINE
1.Description
1. 4-Stroke, 25°inclinde, single cylinder with air-cooled.
2.The color of this engine is opitional. we could do it as our clients demand.
3.Minimun order quantity: 100 sets
4.OEM service is also acceptable. we'd glad to produce gasoline engines which are customer's brand if quantity reach 200sets
5. There is an excellent technology team in our company to ensure to provide our clients with good quality gasoline engines
2. Detailed Technical Specifications
| Model | Discription | MOQ | Delivery Time |
| GE152 | 1.Engine type:single cylinder,2-stroke,air forced cooling 2.Net power:2.5HP(1.8kw)/3600rpm 3.Rated power:1.5HP(1.1kw)/3600rpm 4.Bore*Stroke:52*46mm 5.Displacement:97cc 6.Oil capacity: 0.3L 7.Compression ratio: 7:1 8.Fuel tank capacity:1.3L 9.Fuel consumption ratio:0.8L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil 12.Noise(≤7m): 63dba 13.Package dimension:330300X400mm 14.N.W:8.5kg 15.G.W:9kg 16.20GP.Container load:763pics 17.40HC.Container load:1638pics | 50pics | 25days after receiving the depoist |
| GE168F-1E | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Max.power:6.5HP(4.8kw)/3600rpm 3.Rated.power:5.2HP(3.8kw)/3600rpm 4.Bore*Stroke:68*54mm 5.Displacement:196cc 6.Oil capacity: 0.6L 7.Compression ratio: 8:1 8.Fuel tank capacity:3.6L 9.Fuel consumption:1.8L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 65dba 13.Package dimension:415*360*370mm 14.N.W:17kg 15.G.W:18kg 16.20GP.Container load:644pics 17.40HC.Container load:1339pics | 50pics | 25days after receiving the depoist |
| DE170F/E | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Net power:7.0HP(5.1kw)/3600rpm 3.Rated power5.6HP(4.1kw)/3600rpm 4.Bore*Stroke:70*55mm 5.Displacement:208cc 6.Oil capacity: 0.6L 7.Compression ratio: 8:1 8.Fuel tank capacity:3.6L 9.Fuel consumption:1.8L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 65dba 13.Package dimension:400355X380mm 14.N.W:17kg 15.G.W:18kg 16.20GP.Container load:504pics 17.40HC.Container load:1253pics | 50pics | 25days after receiving the depoist |
| GE173F | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Net power:8.0HP(5.9kw)/3600rpm 3.Rated power:7.0HP(5.1kw)/3600rpm 4.Bore*Stroke:73*58mm 5.Displacement:240cc 6.Oil capacity: 1.1L 7.Compression ratio: 8.5:1 8.Fuel tank capacity:6L 9.Fuel consumption:2.3L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 65dba 13.Package dimension:475X450480mm 14.N.W:25kg 15.G.W:26kg 16.20GP.Container load:288pics 17.40HC.Container load:625pics | 50pics | 25days after receiving the depoist |
| GE177F/E | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Net power:9.0HP(6.6kw)/3600rpm 3.Rated power:7.5HP(5.5kw)/3600rpm 4.Bore*Stroke:77*58mm 5.Displacement:270cc 6.Oil capacity: 1.1L 7.Compression ratio: 8.5:18. 8.Fuel tank capacity:6L 9.Fuel consumption:2.5L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 68dba 13.Package dimension:475X450480mm 14.N.W:25kg 15.G.W:26kg 16.20GP.Container load:288pics 17.40HC.Container load:625pics | 50pics | 25days after receiving the depoist |
| GE182F | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Net power:11.0HP(8kw)/3600rpm 3.Rated power:9.2HP(6.8kw)/3600rpm 4.Bore*Stroke:82*64mm 5.Displacement:340cc 6.Oil capacity: 1.1L 7.Compression ratio: 8.5:1 8.Fuel tank capacity:6.5L 9.Fuel consumption:3.2L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 68dba 13.Package dimension:475X465X515mm 14.N.W:34kg 15.G.W:35kg 16.20GP.Container load:240pics 17.40HC.Container load:625pics | 50pics | 25days after receiving the depoist |
| GE188F/E | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Net power:13.0HP(9.6kw)/3600rpm 3.Rated power:10.3HP(7.6kw)/3600rpm 4.Bore*Stroke:88*64mm 5.Displacement:390cc 6.Oil capacity: 1.1L 7.Compression ratio: 8.5:1 8.Fuel tank capacity:6.5L 9.Fuel consumption:3.8L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 68dba 13.Package dimension:475X465X515mm 14.N.W:34kg 15.G.W:35kg 16.20GP.Container load:240pics 17.40HC.Container load:625pics | 50pics | 25days after receiving the depoist |
| DE186F/E | 1.Engine type: single cylinder,4-stroke,air forced cooling 2.Net power:15.0HP(11kw)/3600rpm 3.Rated power:11.6HP(8.5kw)/3600rpm 4.Bore*Stroke:90*66mm 5.Displacement:420cc 6.Oil capacity: 1.1L 7.Compression ratio: 8.5:1 8.Fuel tank capacity:6.5L 9.Fuel consumption:4.1L/h 10.Idle speed:1450±150 RPM 11.Starting system: recoil/ electric 12.Noise(≤7m): 68dba 13.Package dimension:475X465X515mm 14.N.W:35kg 15.G.W:36kg 16.20GP.Container load:240pics 17.40HC.Container load:625pics | 50pics | 25days after receiving the depoist |

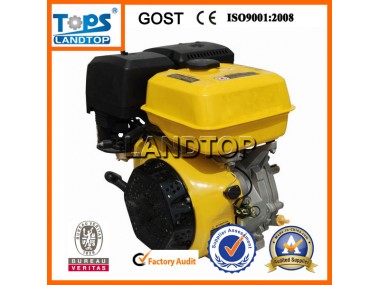

3. Photo Show
