| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | jtc | 条件: | 新しい | 重量: | 300キログラム | 力(W): | 1100ワット | 保証: | 1年 | 認証: | iso9001- | 次元(L*W*H): | 1500Wx1000Lx2200H | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 素材: | ステンレス鋼304 | 電源(v):: | 220/380ボルト、60 ｈｚ | ファン電源:: | 1100ワット | 風速: | 25-30メートル/秒 | エアシャワー時間: | 0-99 s調節可能 | hepaフィルター:: | 99.99% 0.3um | ノイズ: | 850mhzの | ドア: | 電子的連動 |
包装
| 包装: | 木製パッケージ |
Product Uses
Air Shower Cleaning Room Instruction
Product description:

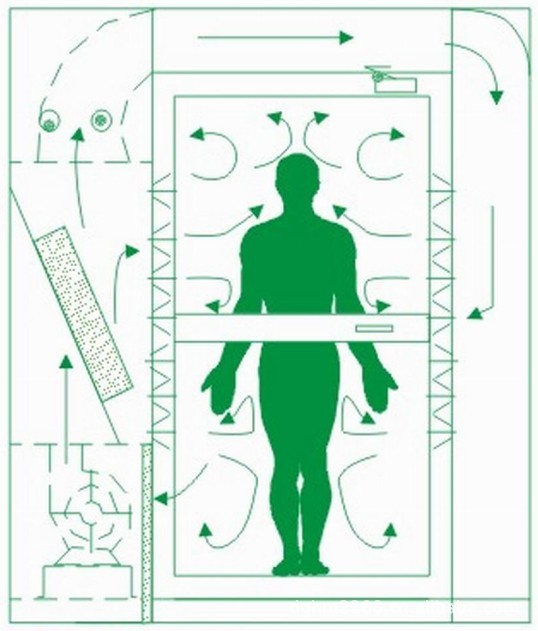

Air shower is mainly composed of cabinet, fans, filters, nozzle, electric control system of five parts. Box body is made by 1.2mm cold plate coating with stainless steel based. Automatic air shower room adopts photoelectric control, electric interlock, automatic blow. Air shower time is adjustable, compact structure, easy to use.
the operator is maximum dust source in working space , Air shower room, a purifying equipment being able to clean the dust adhering to the surface of human body and articles, preventing the unclean air invade into the clean room. To meet the cleanliness requirement of clean room with the help of air-conditioning system in the clean room.
Technical specification
| model | In Out Entrance & Exit | |||||
| External Size(mm) | 1500Wx1000Lx2200H | |||||
| internal Size:(mm) | 800W*860L*1945H | |||||
| Nozzle quantity(pcs) | 16pcs | |||||
| Nozzle blowing wind speed(m/s) | >25m/s | |||||
| Shower time(S) | 10-99S(adjustable) | |||||
| Fan Power(W) | 1100W*2 | |||||
| LED light power(W) | 18w*1 | |||||
| Power | 380V 50HZ | |||||

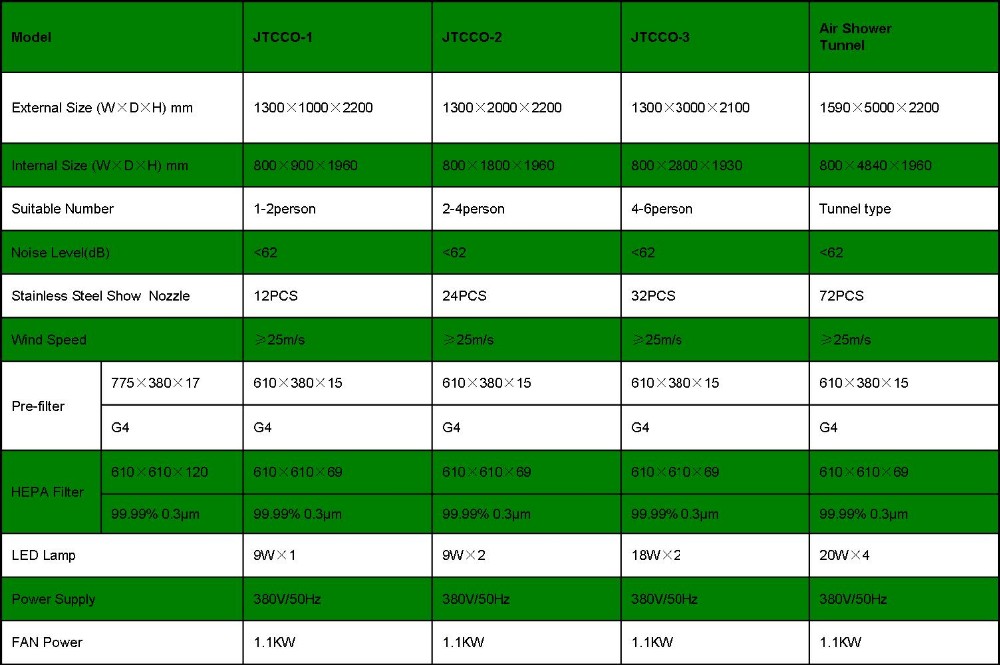

Standard size and Specification:
