電圧: | 240ボルト | 原産地: | 中国(本土) | 銘柄: | jtc | 条件: | 新しい | モデル番号: | 3666WHL | 重量: | 100グラム | 力(W): | 380ワット | 保証: | 1年 | 認証: | iso9001/iso14001/ce | 次元(L*W*H): | 30*30センチ | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 素材: | ステンレス鋼 |
包装
包装: | 標準輸出カーボン |

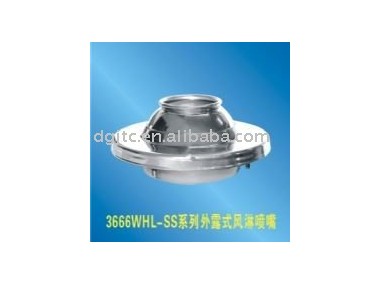

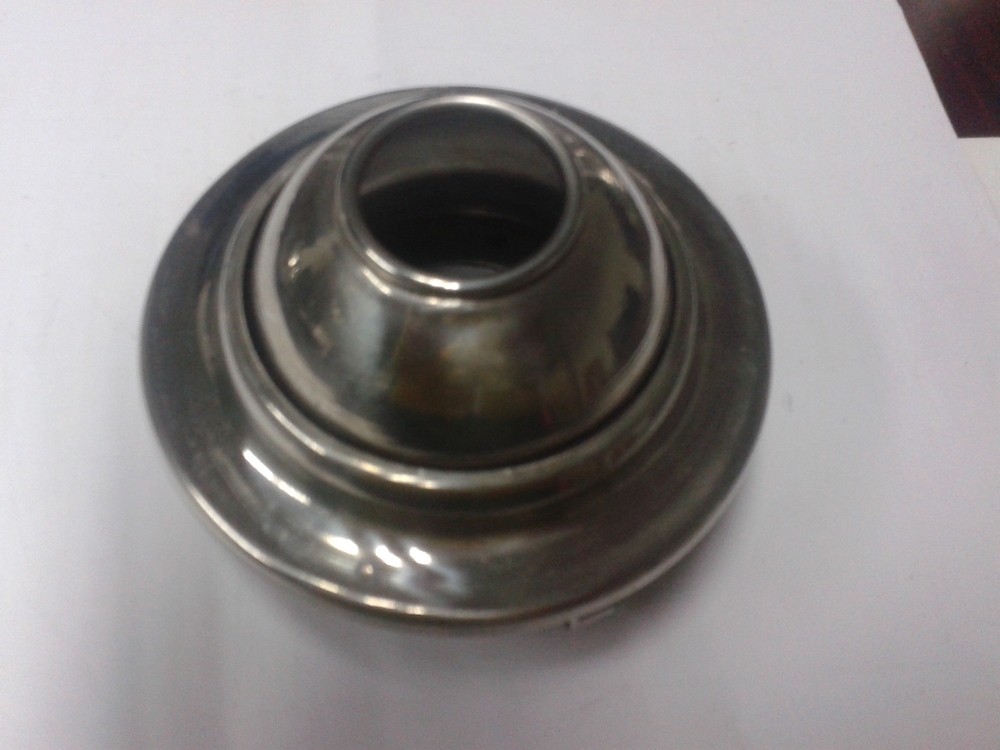

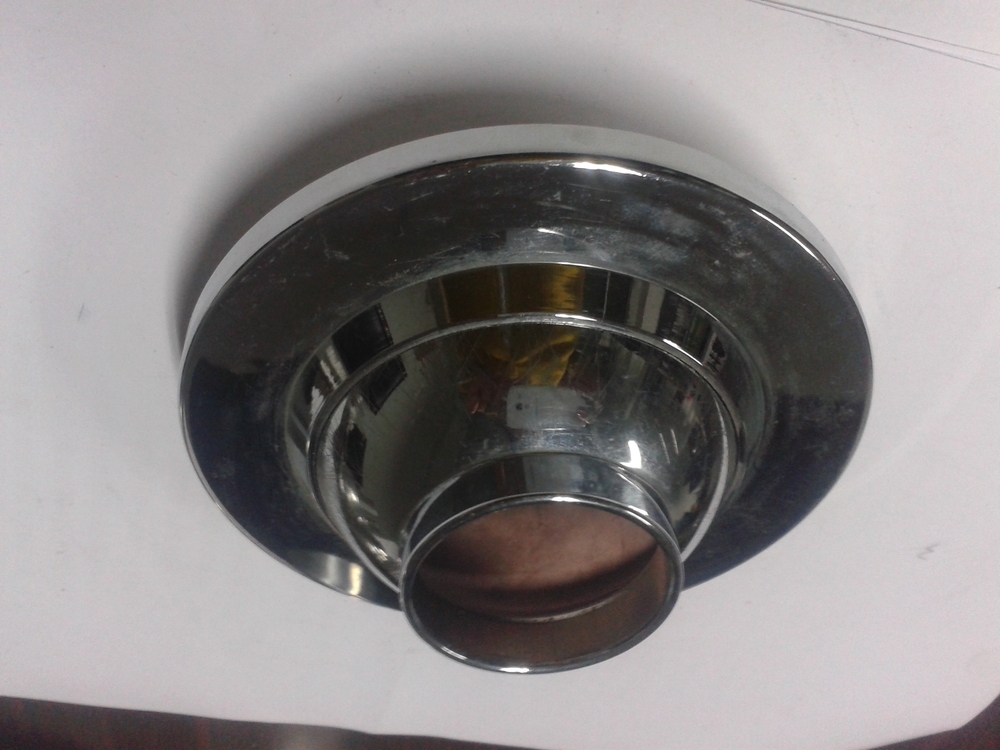

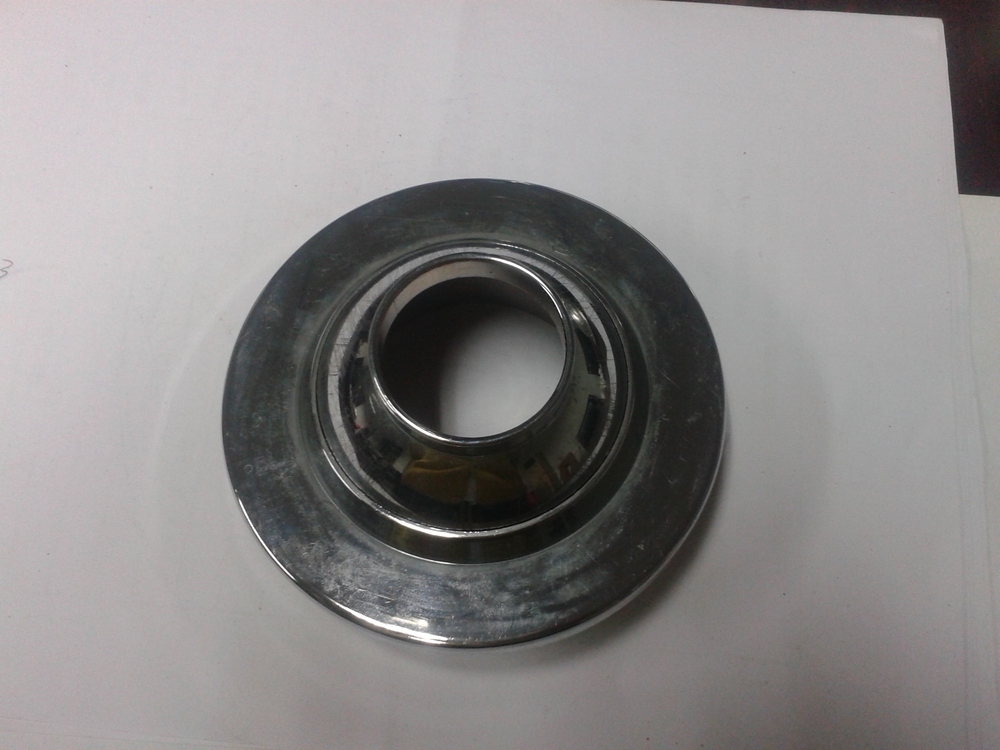

Exposed Stainless Steel Air Shower Nozzle
Material:SS
Style:exposed
Application:dry flow line,air shower,supply air,etc
Characteristic
Series | Nozzle Orifile Diameter (mm) | Overall Dimension(mm) | Weight (g) | |||||
Length | Width | Tapping holes distance | Screw lenght | Screw diameter | SS | ASB (chromplate) | ||
3066WHL-SS | 20/30/38 | 111 | 48 | 86 | 12 | 3 | 170
| /
|
111 | 48 | 86 | 18 | 3 |

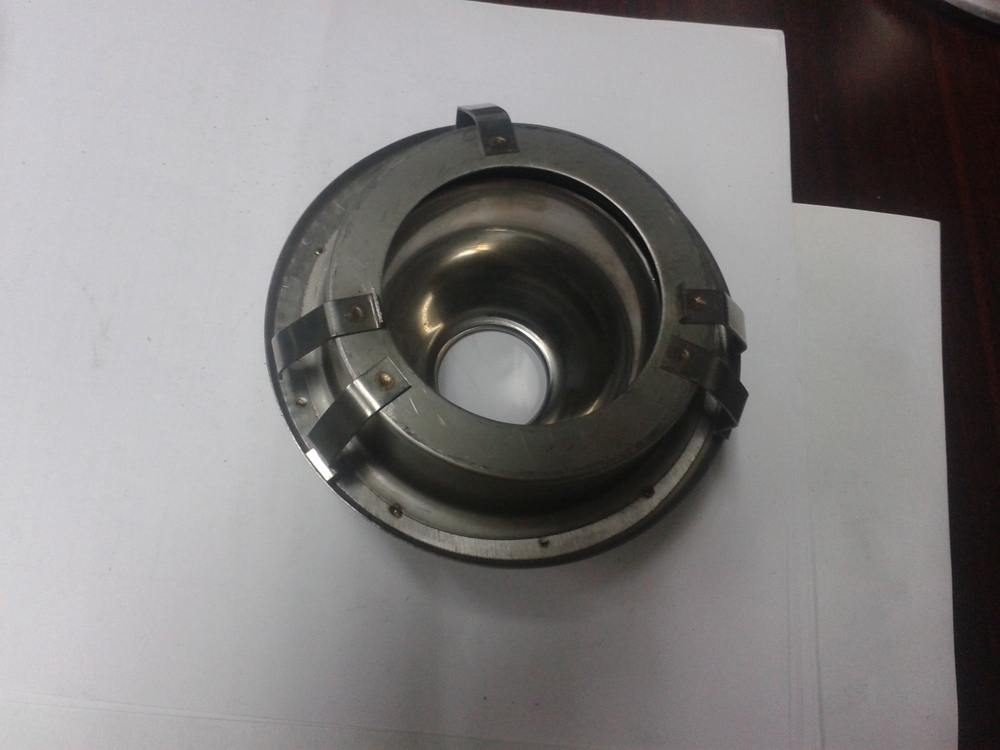

Structure:
back cover,seal ring,typhon,ball head
Model | Material | Effective Area(M2)
| Air blowing Measure (M3/h) | |||||||
SS | ABS | SS(Large bore) | V=2m/S | V=3m/S | V=4m/S | V=5m/S | V=6m/S | V=7m/S | ||
WHL20 | v | v |
| 3.14*10-4
| 2.3 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 |
WHL30 | v | v |
| 0.7*10 -3 | 5 | 7 | 10 | 12 | 15 | 17 |
WHL38 | v | v |
| 1.13*10 -3 | 8 | 12 | 16 | 20 | 24 | 28 |
WHL40 |
|
| v | 1.26*10 -3 | 9 | 14 | 18 | 23 | 27 | 32 |
WHL70 |
|
| v | 3.84*10 -3 | 28 | 40 | 55 | 69 | 83 | 97 |
