| 原産地: | 中国(本土) | 銘柄: | lt | モデル番号: | av04 | タイプ: | 空気調節の付属品 | タイプ: | エアコンは分ける | 適用: | a/c | 接続: | 1/4 " |
包装
| 包装: | 100ピース/バッグ |
COPPER REFRIGERANT CHARGING VALVES 1/4inch O.D, length 9cm EXW YIWU
The charging valve is an one-way service valve with valve inside,
which is used on the freezer,cold store and air conditioning unit.
MOQ:50000pcsUNIT PRICE: 0.176usd/pcPRICE TERM: EXW YIWU
Product Description
Applicable Refrigerant | HCFC and HFC |
Applicable Medium Temperature | -25°C ~ +120°C |
Max. Operating Pressure | 3.0 MPa |
Msx.Allowable pressure | 4.5MPa |
Features
l Equipped with imported valve inside of reliable performance.
l Double sealing ensure leak-tight.
l Copper tube of various lengths and hardness are available.
l Valve bonnet is knurled for easy handing.
Type | Connection | Size | Overall Dimension | ||||||
A | B | ΦD | H | L | Hexagonal S | Thread M | |||
Type A | 1/4 SAE | 1/8 | 60 | 14 | 3.17 | --- | 94 | 11 | 7/16-20UNF |
3/16 | 4.76 | ||||||||
1/4 | 90 | 6.35 | 124 | ||||||
A=length,which can be produced according to customers' requirement

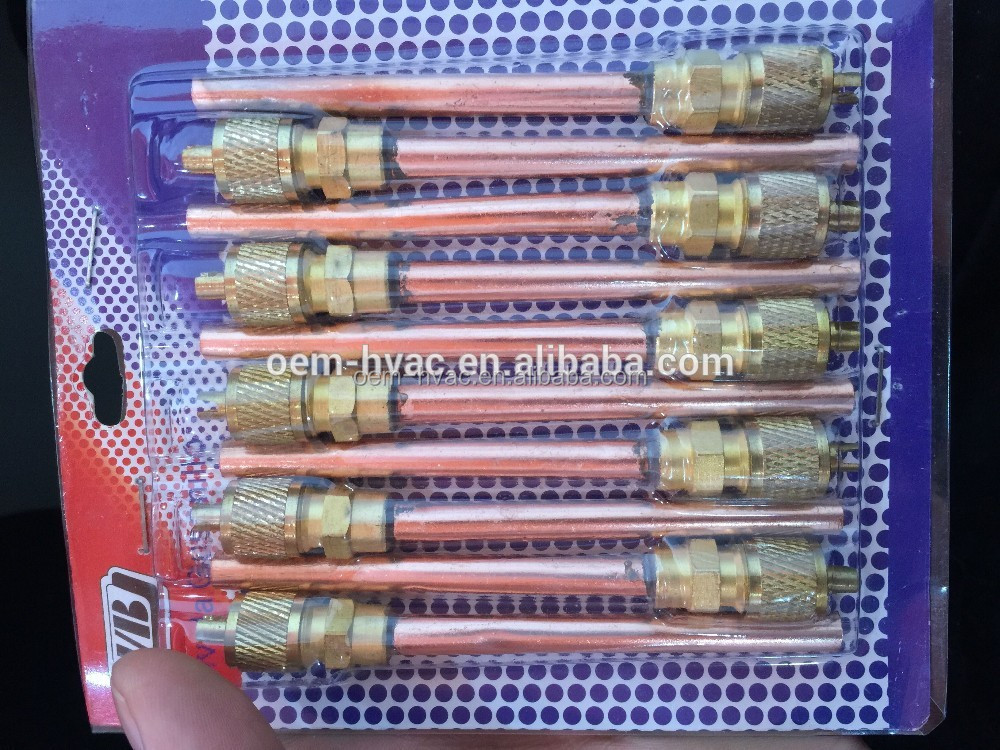

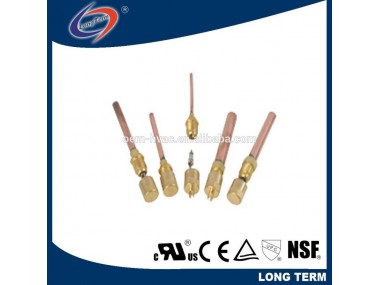

Product Pictures
