| 電圧: | n/a | 原産地: | 中国(本土) | 銘柄: | herrman | 適用: | 食品加工 | 条件: | 新しい | モデル番号: | n/a | 重量: | n/a | プロセス: | 減圧蒸留 | 力(W): | n/a | 動力源: | スチーム | 保証: | 1年 | 認証: | iso/GJB9001A/asme | 次元(L*W*H): | n/a | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 素材: | ステンレス鋼 |
包装
| 包装: | 木製ケース |
APPLY:

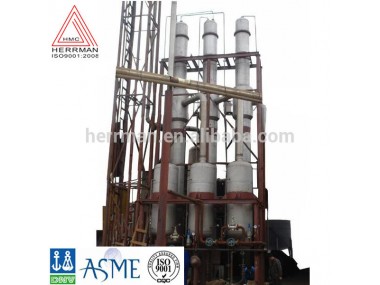

Triple effect forced circulation falling film evaporator is used for food and chemical processing industry to concontrate the liquid material. The concentrating ratio can reach to 50% once. It works by steaming, which is environmental and high-efficiency.
SPECIFICATION:
model | HM-3.0 | HM-4.5 | HM-6.0 | HM-9.0 | HM-12.0 | HM-15 | HM-20 | HM-24 | HM-30 | HM-50 | |
Water evaporation capacity (kg/hr) | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 20000 | 24000 | 30000 | 50000 | |
Evaporation exhaustion (kg/hr) | 840 | 1260 | 16800 | 2700 | 3600 | 4500 | 6000 | 7200 | 9000 | 15000 | |
Pressure of the primary steam(Mpa) | 0.4-1 | ||||||||||
Water evaporation capacity per ton steam(t) | 3.57 | 3.33 | |||||||||
Vacuum degree | Single-effect(Mpa) | 0 | |||||||||
Double-effect(Mpa) | -0.06 | ||||||||||
Triple-effect(Mpa) | -0.85 | ||||||||||
Evaporating temperature | Single-effect | 99° | |||||||||
Double-effect | 76° | ||||||||||
Triple-effect | 53° | ||||||||||
Concentration of the discharging(%)
| 40-82 | ||||||||||
As the customized product, we can meet different requirements. Our sales, pre-sales and after-sales service is the best.
ASME approved.
Packaging & Shipping
Wooden case.
Company Information
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2. Q: wher are your factory located?
A: Our factory located in Hefei city,Anhui provice.
3. Q:Can I inspect the factory?
A: Yes, you can.
4.Q: How long have your company do export?
A: 20 years.
Please contact us for more details!
