Specifications

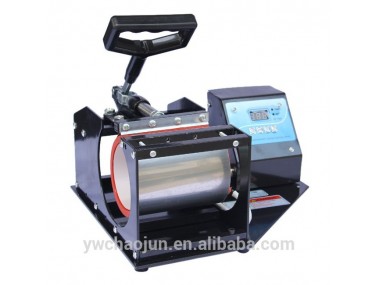

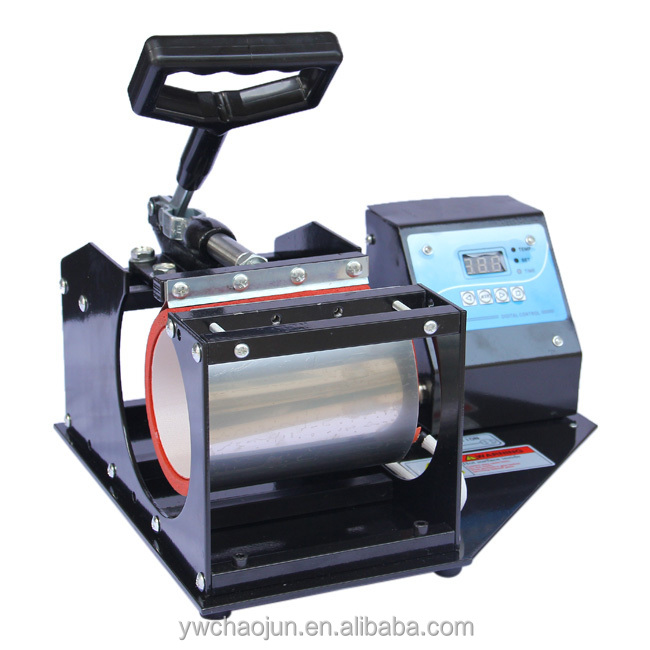

The mug press machine is a digital swing-away press machine,it can work prefectly for commercial use or family use.It is good for making promation products,ad gifts,and souvenirs for companies ,factories,hotels,restaurants,shops and schools Furthermore, it can help you to make lots of unique style items you may want to use dye sublimation for. Perfect DIY gifts for Birthday or Festival, such as New Year's Day, Saint Valentine's Day, Mother's Day, Father's Day, Halloween, Thanksgiving Day, Christmas and so on.

THE MUG PRESS MACHINE INTRODUCTION

1. Plug into the power, open the power. (The machine rated voltage is 220V, the rated input power is 350W)

2. Set the operation procedure :( the temperature shows F degree)

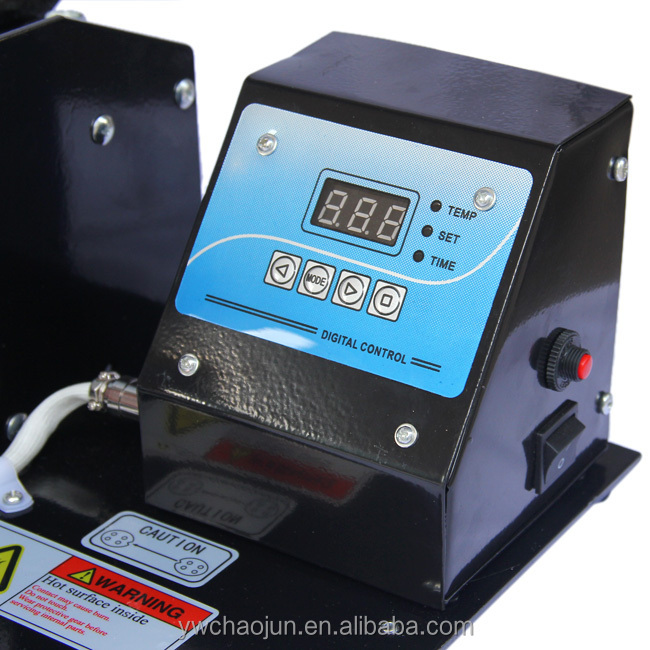

1).The original temperature: Press the MODE SET KEY once, the set indication light will be on, Press the key+ or key - to set original temperature.

2).The Max temperature: Press the MODE SET KEY the second time, the temperature indication light will be on,press the key + or key -to set the max temperature .

3).The max bake temperature: Press the MODE SET KEY the third time, the time indication light will be on,press the key + or key -to set the max bake time .

4).Execution mode: Press MODE set key the fourth time, the machine will go into waiting execution state..

Att: the original time setting range 200~380 degree, the Max temperature setting range 200~430 degree.

The max baking temperature time setting range: 0~999 seconds.

The machine has the function of temperature setting self-locking, so if the original temperature is 340 degree, the machine will control the max temperature range 340~430 degree . Conversely, if the max temperature set 250 degree, then the machine will control the original temperature 200~250 degree.

3. Heat transfer printing

   Baking slowly: put the products into the mug press, press down the pressure handle, open the

power, so the temperature will go up .When the temperature raise to the original setting temperature,

the machine will send out short stridulation, press the execution key once ,till the machine send out

dah (long voice). Press the execution key again to finish the heat printing. Take out the product,

the temperature will come back the original temperature gradually.

   Baking fastly: under the original temperature state, fix the object, press down the pressure handle,

press the execution key once, until the machine send out dah, press the execution key again , finish the

heat transfer printing . Take out the object, the temperature will come back to original

temperature.

4. The question prompt for the failure printing.

A. the color is lighter: The temperature is too slow, or the pressure is not even, or the time is too

short .

B. the design is indistinct:       the time is too long and lead to ink diffusing

C. the design has no luster: the pressure is too high or temperature too high.

D. part of design is indistinct: heat printing zone or the heating is not even.

E. Scar on the design: Heat printing time is too long.

F. dept of color is not the same: pressure not even or the coating is not even.

G. paper stick to the object: The temperature is too high, or the coating of the object is not good.
