| 原産地: | 中国(本土) | 寸法 (L*W*H): | 23502040x1770mm | 銘柄: | 進徳 | モデル番号: | pz1740e | 自動等級: | 半自動 | タイプ: | オフセット印刷機 | 全体のパワー: | 6.82kw | 色及びページ: | 単一色 | 版のタイプ: | 平面プリンター | 条件: | 新しい | 使用法: | ペーパープリンター | 証明書: | Cqm、: 2008 |
包装
| 包装: | 木箱 |

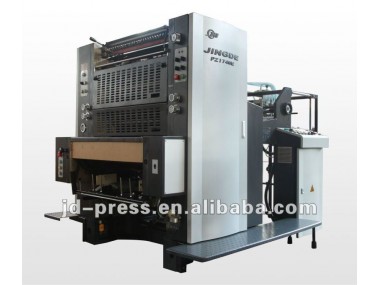

This is our product: PZ1740E
Specifications:
Model | PZ1740E |
Machine speed | 12000s.p.h |
Maximum sheet size | 520×740mm |
Minimum sheet size | 273×370mm |
Sheet thickness | 0.04-0.45mm |
Maximum image area | 510×730mm |
Plate size | 625×755×0.3mm |
Blanket size | 680×755X1.9mm |
Maximum feeder pile height | 930mm |
Maximum delivery pile height | 420mm |
Machine overall dimension | 2350×2040×1770mm |
Total power of motors | 6.82kw |
Gross weight | 3700kg |
Features:
1. The Driven system is equipped with Advanced Frequency Speed-regulating System. The functions of forwards, backwards, low-speed run, constant velocity and braking are controlled by frequency converter. And the main motor is 4Kw Three-phase AC induction motor. ETR (Electronic Thermal Relay) protect motors from overload.
2. Control circuit is controlled by PLC (Programmable Logical Controller) and Electronic sheet alignment control. When pressing the button FEED, the press is running automatically according to procedures, and inspect if there are double sheets, no sheets and distorted sheets or not automatically.
3. Eccentric Swing-up gripper transfer system is equipped with the conjugate cam and the constant force device, which ensures to transfer sheets stably, accurately and reliably.
4. The pressure of Ink form rollers and water form rollers is adjusted by eccentric structure of worm and worm wheel, because of convenient operation.
5. The plate cylinder is equipped with a quick-action plate clamping system. It is easier and more convenient to install and remove plates.
6. The cams are designed and optimized through computer and machined on the NC machine tools
7. The press is equipped with automatic centralized lubrication system of fixed point, fixed time and fixed quantity.
8. The interferences (faults) display on the control console. It is easier for operator to detect the interferences (faults) sources.
9. The feeder head is equipped with the patented rotary air distributing valve to clean the lint and dust out automatically.
Standard equipment:
| Standard equipment | Remarks |
1 | Traditional ink ductor (adjust by manual) |
|
2 | Distributing roller phase adjustment by manual |
|
3 | Water dampening |
|
4 | Bearer by bearer |
|
5 | Rapid positioning clamp bar(manual) |
|
6 | Radial and circumferential direction adjusting plate |
|
7 | Mechanical powder sprayer |
|
8 | Lubricating system |
|
Optional equipment:
No | Optional equipment | Price |
1 | Split (staggered) ink ductor by remote control |
|
Assembly Shop
Exhibition
Thank you for your interest. If ok, I am very glad to send you the product catalogue.
Looking forward to your inquiry.
