| 原産地: | 中国(本土) | 電圧: | 380v | 銘柄: | ht | 寸法 (L*W*H): | 4500*1200*1400mm | モデル番号: | ht456 | 重量: | 2500キロ | 自動等級: | 自動 | タイプ: | オフセット印刷機 | 色及びページ: | 多色刷り | 全体のパワー: | 1.65kw | 認証: | iso9001 | 使用法: | ペーパープリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 活版印刷 | 条件: | 新しい | 最大プリングエリア: | 560*400mm | 最大用紙サイズ: | 550*375mm | ペパーシートの重量: | 28-250g/m2 | ブランケットサイズ: | 454*560*1.95mm | フォームローラー番号: | 2水3つのインク | 印刷速度: | 2000-8000s/h | 重量: | 2000キロ | パワー: | 2.2キロワット | 電圧: | 380v |
包装
| 包装: | 木製ケースや、 お客さまの要求に応じて |

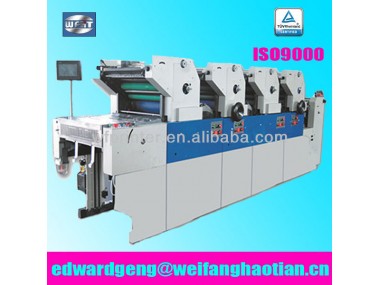

HT456 offset printing machine 4 color
1.the Rubber roller using three-point suspension technology, pneumatic clutch pressure, the pressure will be adjusted well for the accuracy and reliability, and the roller adjust will not affect each other, this protect the roller bearings properly.
2.External high-precision helical gear driver and walk-way iron cylinder to ensure a stable pressure of the printing and delivery of a smooth rotating, to ensure the large printing and very clear mesh work print or copy well, including the small text printing.
3.The whole machine use the way of self-lubricating to ensure that all gears and bearings both in the boot of lubrication at the same time when you operating it.
4.The whole unit of the ink supply Composed by 15 rollers, which including 4 different diameter rollers side by the edition, the system responds quickly, good ink absorption function, the ink duct controlled by the ink sub-control key, also can be adjusted by separately, will not affect each other, to ensure the enough ink reservoir and uniformity smoothly. The ink and water will be controlled electronically, they are all clutched pneumatically.
5.Professional high-quality and reliable feeding system ensure the paper feeding smoothly and accurately.Semi-automatic version Loading, printing version was controlled or adjusted electronically, this shorten the time of version installed and adjusted, reducing the requirements for operators.
6.The machine with the function of synchronization hydropower, when the speed of host-run version changes, then motor of lubricating also changes the speed at the same time.
Specifications
offset printing machine 4 color
1.4color
2.economical unit machine
3.Max sheet size:470*365mm
4.Max pring size:450*345mm
| TECHNICAL SPECIFICATIONS | ||
| Model | HT456 | |
| Max. sheet size | 560 x 395mm | |
| Min. sheet size | 140 x 90mm | |
| Max. print format | 540 x 380mm | |
| Plate size | 560 × 420 × 0.15mm | |
| Blanket size | 560 × 455 × 1.95mm | |
| Paper size | 28-250g/m*2 | |
| Max. speed | 7000 sheets/hour | |
| Speed adjustment | Frequency converter | |
| Gripper margin | 8-10mm | |
| Inking rollers | 14pcs per unit(3 form) | |
| Dampening | 4pcs per unit(1 form) | |
| Power supply | 380v | |
| Main motor | 2.2kw | |
| Air pump motor | 0.55kw | |
| Weight | 2300kg | |
| Package dimension | 4500(L) × 1200(W) ×1400(H)mm | |
