| 電圧: | 必要に応じてモーターをカスタマイズする | 原産地: | 中国(本土) | 銘柄: | 国信 | 条件: | 新しい | モデル番号: | 必要に応じて任意のタイプ | 重量: | 8000キロ | 力(W): | 3000-110000 | タイプ: | 回転式乾燥装置 | 保証: | 1年間 | 認証: | ce証明書 | 次元(L*W*H): | 8000800x800 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 鶏糞ロータリー乾燥機: | ドライヤー、 必要に応じてどのような色を塗る | 船積み: | 海によって | 容量: | 1.5-80t/h | モータ電源: | 7.5-110kw | インストール: | 技術者の指導の下で | ボディ: | 安定した構造 | 品質: | 輸出標準 | 保証: | 1年 | 燃料: | 石炭、 ガス、 電気等の。 | 勾配: | 3％- 5％ |
包装
| 包装: | 鶏糞ロータリー乾燥機に入れた標準40gp付き容器、 40hqまたは必要に応じて |
JZQ series chicken manure rotary drier machine
- Chicken manure rotary drieris a low-fuel-consumption and high efficiency of drying rotary drier
- Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%
- Applicable in animal farming, food brewing, sugar and pharmaceutical industries dealing with high humidity waste, as well as a variety of
- chemical raw materials.
- For resource development and good environmental protection rotary drier
- The rotary drieruses downstream drying process, especially suitable for fast drying the humidity materials which need to preserve nutrition, for example, the drying
- of fresh chicken manure can achieve the purposes of drying, sterilization, deodorant and preservation of nutritional
- Equipped with high,speed rotating drum of crushing devices, which increases the contact area between material and drying medium,
- the internal unique rotary drierdesign, makes materials difficult to adhere to the drum wall panels and parade
- The rotary drierstructure is compact, easy to install and debug, and using small floor area
- Drum and crushing device use stepless speed regulating devices, which can adapt to the different requirements of the drying materials
- The rotary driercan combine the use of different fuels (such as coal, heavy oil, natural gas, and more)
- Facilities and work principle:

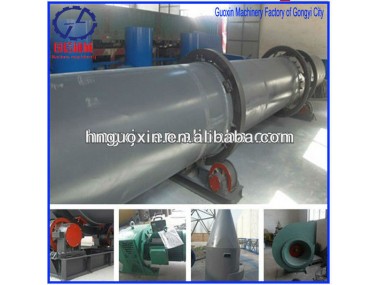

- The complete sets of rotary driermainly is composed of the crushing drum rotary drier, burning furnace, feed spiral, output spiralpipeline, dust collector, airlock, air induced fan, electric control cabinet, and other components
Working principle of chicken manure rotary drier machine:
- Humidity materials are conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices.
- Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process. As the result of the drum wind angle and the induced air, the feed materials move slowly, and discharged from the spiral after drying, the exhaust gas handled by the dust precipitator, venting to the atmosphere.
Technical parameters of chicken manure rotary drier machine:
Model | diameter (mm) | Drum length (m) | Main reducer
| Speed (r/min) | Production capacity (t/h) | Power (kw) | Weigh(t) | Volume(m3) | |
Model | Ratio
|
|
|
| |||||
Φ1.010 | Φ1000 | 10 | JZQ450-16-11 |
| 6.73 | 1-3.8 | 5.5 | 7.5 | 7.85 |
Φ1.2X12 | Φ1200 | 12 | ZL50-16-1 |
| 5.8 | 1.8-5.5 | 11 | 13.8 | 13.31 |
Φ1.5X12 | Φ1500 | 12 | JZQ500-111-2F | 16.46 | 4.8 | 4-9 | 15 | 22.3 | 21.2 |
Φ1.5X 15 | Φ1500 | 15 | ZQ50-1611-2 | 16.46 | 4.8 | 4-10 | 18.5 | 28.8 | 26.5 |
Φ1.8X14 | Φ1800 | 14 | JZQ650-111 | 18.84 | 3.2 | 6-12 | 30 | 39.8 | 48.22 |
Φ2.2X16 | Φ2200 | 16 | ZJQ750-111 | 31.5 | 3 | 10-23 | 37 | 51 | 60.1 |
2.2X18 | Φ2200 | 18 | JZQ750-111 | 31.5 | 3 | 10-25 | 37 | 53.3 | 70.43 |
Φ2.4X20 | Φ2400 | 20 | ZL85-13-1 | 27.16 | 2.83 | 20-40 | 45 | 78.4 | 90.43 |
Φ2.8X24 | Φ2800 | 24 | ZL100-16-1 | 31.5 | 2.59 | 20-45 | 55 | 97 | 147.8 |
Φ3.020 | Φ3000 | 20 | ZL100-16-1 | 41.54 | 2.6 | 25-48 | 55 | 102 | 141.3 |
Φ3.2X25 | Φ3200 | 25 | ZLH115 | 41.54 | 2.1 | 30-55 | 110 | 148 | 201 |
