| 電圧: | カスタマイズされたモーター | 原産地: | 中国(本土) | 銘柄: | 国信 | 条件: | 新しい | モデル番号: | 必要に応じて任意のタイプ | 重量: | 6000キロ | 力(W): | 3000-110000 | タイプ: | 回転式乾燥装置 | 保証: | 1年間 | 認証: | ce証明書 | 次元(L*W*H): | 8000800x800 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アフターサービス- の後で: | 全体の使用寿命のための | 燃料: | 石炭、 ガス、 マズート、 電気、 ディーゼルとしてetc | 船積み: | 海によって | インストール: | 私たちのエンジニアによって導かれる | バイオマス乾燥機材料: | q345マンガン鋼 | スペアパーツ: | ほとんどまたは私達が供給する | 熱リソース教材: | 石炭、 ガス、 elechtricity、 等 | バイオマス乾燥機品質: | 輸出標準で信頼性の高い構造 | 勾配: | 3％- 5％ | デザイン: | 100％新しい |
包装
| 包装: | バイオマス乾燥機に入れた20gpたり40gp標準コンテナ、 40hq、 frのコンテナ、 バルクで、 木製ケースの予備品 |

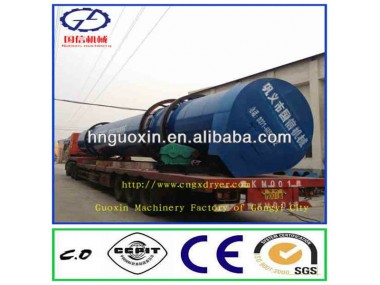

Introduction of rotary drier in Guoxin Machinery Factory:
- We are factory spcailzed in dryers located in Zhengzhou city which is machinery center in China,Rotary drier mainly dry the mateiral with small size like coal,lignite,silica sand, sand,sawdust,chicken manure,palm fiber etc.
- For the dryer we have CE proved and the speed and temperature of the rotary drier can adjust.
- Our rotary drier have exported Dubai, Italy, Malaysia, Canada, Vietnam, Indonesia etc. The mahine can work well.
- We will send our technician to clients working sites help clients install the whole production line until the rotary drier can have good product, then our engineer will back to our country.
Material of biomass drying machine:
- The dryer main include:
- Feeder machine(Q235)
- Temperature detector(2 set)
- Big gear( heat treatment)
- Transmission parts( motor, reducer,small gear)
- Small gear( smith forging)
- Discharge machine(Q235)
- Cyclone(Q235)
- Motor( Made in Xinxiang city)
- Bearing( Waifangdian Luoyang City)
- Reducer( Zibo Shangdong)
- Material of dryer: Q345 Manganese steel.
Working principle of biomass drying machine:
- 1 Biomassdrying machine have special design. For the biomassit have big moisture around 55%. sawdust aftr drying always used as the fuel, biomass,make paper etc.
- 2 The material walk into the biomass drying machine machine by conveyor through the feeder machine walk into the sawdust dryer machine. Inside the sawdust dryer machine, there have lifting plate, it can make the mateiral and heat totally contact.
- 3 And at the start and the end of the biomass drying machine, there have temperature controller, so that you can check everywher temperature inside the dryer. For the biomass drying machine. There have big moisture inside, but for our biomass drying machine, teh temperature can adjust through the transmission parts of biomass drying machine. ther have three area temperature,. and last the sawdust will come out from the discharge port of sawdust dryer machine. Then the material will be dried as you required.
................................................................................................................................................................
based parameters of GUOXIN biomass drying machine:
Model | Diameter (mm) | Drum length (m) | Main reducer
| Speed (r/min) | Production capacity (t/h) | Power (kw) | Weigh(t) | Volume(m3) | |
Model | Ratio
| ||||||||
Φ1.010 | Φ1000 | 10 | JZQ450-16-11 | 6.73 | 1-3.8 | 5.5 | 7.5 | 7.85 | |
Φ1.2X12 | Φ1200 | 12 | ZL50-16-1 | 5.8 | 1.8-5.5 | 11 | 13.8 | 13.31 | |
Φ1.5X12 | Φ1500 | 12 | JZQ500-111-2F | 16.46 | 4.8 | 4-9 | 15 | 22.3 | 21.2 |
Φ1.5X 15 | Φ1500 | 15 | ZQ50-1611-2 | 16.46 | 4.8 | 4-10 | 18.5 | 28.8 | 26.5 |
Φ1.8X14 | Φ1800 | 14 | JZQ650-111 | 18.84 | 3.2 | 6-12 | 30 | 39.8 | 48.22 |
Φ2.2X16 | Φ2200 | 16 | ZJQ750-111 | 31.5 | 3 | 10-23 | 37 | 51 | 60.1 |
Φ2.2X18 | Φ2200 | 18 | JZQ750-111 | 31.5 | 3 | 10-25 | 37 | 53.3 | 70.43 |
Φ2.4X20 | Φ2400 | 20 | ZL85-13-1 | 27.16 | 2.83 | 20-40 | 45 | 78.4 | 90.43 |
Φ2.8X24 | Φ2800 | 24 | ZL100-16-1 | 31.5 | 2.59 | 20-45 | 55 | 97 | 147.8 |
Φ3.020 | Φ3000 | 20 | ZL100-16-1 | 41.54 | 2.6 | 25-48 | 55 | 102 | 141.3 |
Φ3.2X25 | Φ3200 | 25 | ZLH115 | 41.54 | 2.1 | 30-55 | 110 | 148 | 201 |
...........................................................................................................................................................
about GUOXIN:
We warmly welcome you come our factory check biomass drying machine here, we can pick you at the airport or train station.
