電圧: | 380ボルト、 440ボルトまたはカスタマイズ | 原産地: | 中国(本土) | 銘柄: | mg | 条件: | 新しい | モデル番号: | MG625 | 重量: | 8-15 t | 力(W): | 18-36kw | タイプ: | 円筒乾燥装置 | 保証: | 12ヶ月 | 認証: | iso9001: 2008、 ce | 次元(L*W*H): | 2.2 × 2.5 × 2.8メートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アプリケーション: | 乾燥砂、おがくずと他のウェット素材 | 色: | カスタマイズされた | タイプ: | 3気筒ロータリータイプ | インストールとトレーニング: | を提供 | 配達時間: | 20日以内に支払いを受けた後あなたの預金 | 容量: | に基づいて異なるモデルから3-12/h | 操作: | 簡単操作 | 利点: | エネルギーの節約 | 優勢: | 専門メーカー | のキャラクター: | 耐久性 |
包装
包装: | 1,標準耐航性のある包装。 2,バルクと木製の包装。 |
We are specialized manufacturer of sand dryer and dedicated in this field for more than 10 years, we can provide our clients from working site planning to high quality sand dryer machine, installation and training, good after-sales services, life-time technical support etc.
China high quality hot sale wood sawdust rotary drum dryer for drying sand
Description of wood sawdust rotary drum dryer:
The wood sawdust rotary drum dryer is made up of three different diameter homocentric cylinder according to the certain mathematical relationship and cylinder structure then combinated by embedded with each another.Because of the three-cylinder dryer special structure, the length of the cylinder body is the single cylinder dryer one third.base area than the single cylinder dryer save 65%, the basic investment corresponding reduced. This dryer adopts roller and belt friction transmission, has a low power transmission and reduces the noise of equipment. Sealing system uses a micro touch technology, has a better sealing effect, reduces the dust pollution. The three-cylinder dryer can adapt to coal, oil, gas and other various fuels, can dry lump, particle shape,and powder and so on many kinds of materials, accord with a policy to create an environment friendly, resource conservation-oriented society, and is an environmental protection energy-saving products which is the replacement of traditional drying equipment.
Advantages of wood sawdust rotary drum dryer:
1. With high technical content, cylinder self insulation, thermal efficiency is as high as 80% (single cylinder dryer is only 35 percent), thermal efficiency than single cylinder drying saves coal 68 percent, yields 100%.
2. Compared to single cylinder dryer the machine length shortens 60%, in favour of process arrangement. Reduces workshop covered area, saves the project investment by around 40%. Covers an area of about 20m2.
3. Heat-resisting wear-resisting alloy steel plate, four times than ordinary steel wear-resisting. Long service life and easy maintenance.
4. High thermal efficiency, outside shell temperature below 60 °C (single cylinder dryer outside shell temperature as high as 150°C), output of low temperature, discharging temperature below 60 °C.
5. Output of low temperature, be helpful for dust removal equipment to use a long time, can be directly supporting air tank pulse bag filter.
6. Construction investment reduces 50% or so, power consumption reduces 60%.
7. Don't need sizes of gear-driving,and adopts roller rotation
8. Hot air stove can supporting fluidezed bed, spray stove, hands burned furnace, also used in fuel and gas type, can bake the below 20 mm pieces of materials, aggregates, powder material.
Technical Parameters of wood sawdust rotary drum dryer:
Model | Capacity | Moisture of finished drying sand | Coal burning capacity(kg/t) | Sand dryer main motor (kw) |
MG623 | 3-5t/h | <0.5% | 16-18 | 4 |
MG625 | 5-8t/h | <0.5% | 15-17 | 5.5 |
MG6210 | 10-12t/h | <0.5% | 14-16 | 8 |

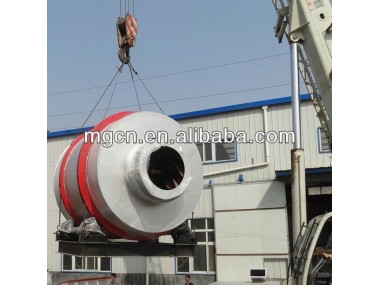

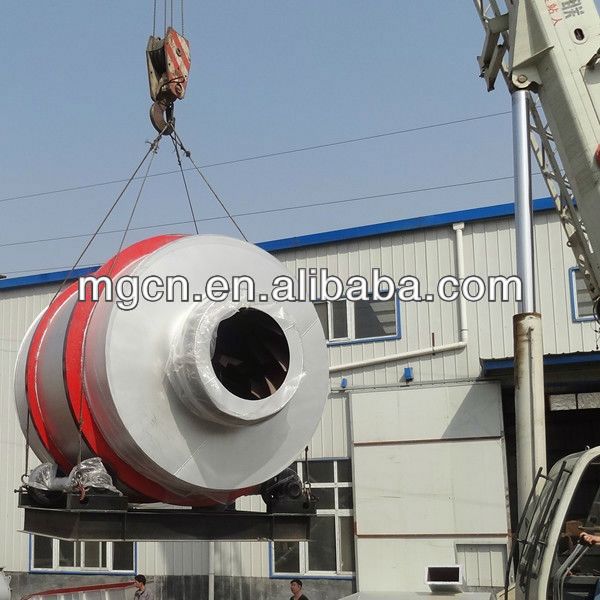

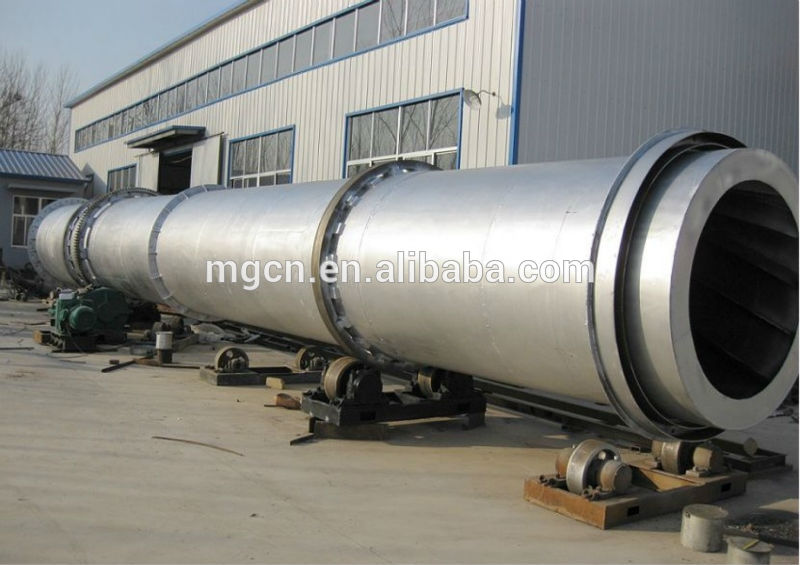

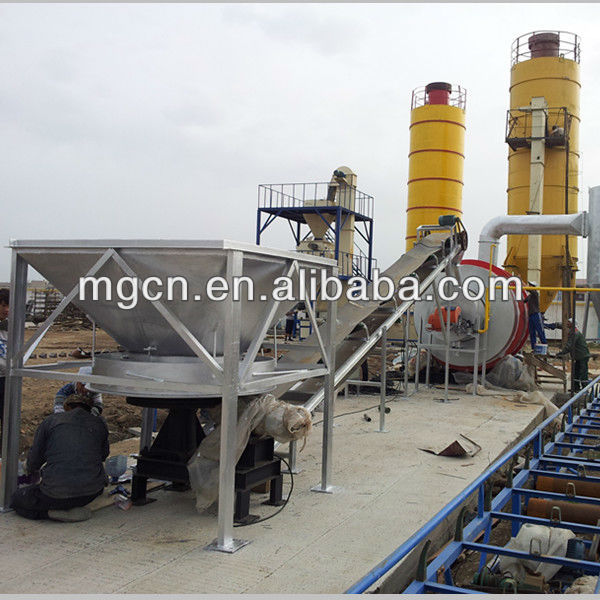

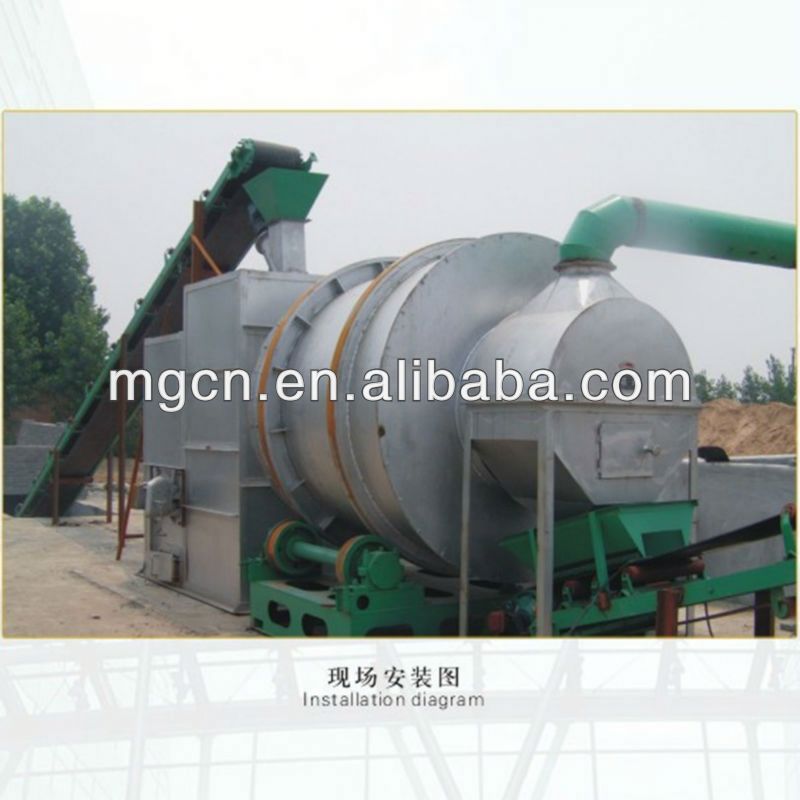

wood sawdust rotary drum dryer in factory:
....
....
