電圧: | 380ボルト50 hz 3相 | 原産地: | 中国(本土) | 銘柄: | derry | 条件: | 新しい | モデル番号: | TRM-GTHG2420 | 重量: | 60 t | 力(W): | 37000 | タイプ: | 円筒乾燥装置 | 保証: | 一年 | 認証: | iso/ce/sgs | 次元(L*W*H): | dia18 * Length12m | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 傾斜( %): | 3-5 | ローター速度( r/min): | 1.5-5 | 空気入口温度( ℃): | ≤800 | 容量( t/h): | 18-30 | 色: | あなたの要求として | アプリケーション: | 砂、 スラグ、 化学物質 | エネルギー消費: | を下げる | モーター: | 宇通 | 外径: | 1800ミリメートル | 材料: | ステンレス鋼 |
包装
包装: | 合板ケース |
Features of animal feed pellet dryer :
1. Using the dynamic powder selecting device.
2. Powder selecting high efficiency.
3. Convenient fineness adjustment.
4. The animal feed pellet dryer with professional design.
5. The animal feed pellet dryer adopts assembled hoist board so as to exc- hanger heat fully and lower the energy consumption.
Technical parameter of animal feed pellet dryer :
Model | Inclination (%) | Rotor speed (r/min) | Air inlet temperature (°C) | Power (kw) | Capacity (t/h) | Weight (t) |
TRM—GTHG0606 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
TRM—GTHG1010 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
TRM—GTHG1512 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
TRM—GTHG1812 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
TRM—GTHG2212 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
TRM—GTHG2218 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
TRM—GTHG2220 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
TRM—GTHG2420 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
TRM—GTHG3020 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
TRM—GTHG3025 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |

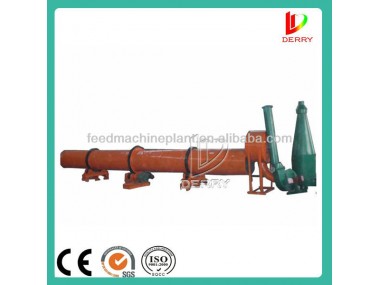

Pictures of animal feed pellet dryer :
