• ライジング式空気乾燥機<various sizes>-乾燥したキャビネット
    商品番号: 13360183
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: Mingyang モデル番号: GHJ-7 GHJ-10
    タイプ: 乾燥したキャビネット designment: personnal 効率: 高い
    費用: 適度

    包装

    包装: 木材ケースで。

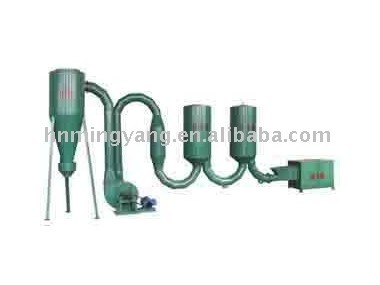

    This air rising type drying machine is suitable for drying materials of moisture 30-60%. Wet material is input into the hopper. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer can reduces the moisture to 8-12% one time with the advantages of lower cost consumption and high efficiency.

    ライジング式空気乾燥機<various sizes>



    Model

    QHJ-1

    QHJ-2

    GHJ-7

    GHJ-10

    Power

    4kw

    11kw

    1.5+5.5kw

    2.2+5.5kw

    Capacity

    300kg/h

    600kg/h

    700kg/h

    1000kg/h

    Net weight

    1.6T

    2.5T

    2.6T

    3.5T

    Gross weight

    1.75T

    2.65T

    2,75T

    3.65T

    Requirements on the moisture content of the raw material

    about 30%

    40-70%

    The moisture content of the product

    8-12%
