| 原産地: | 中国(本土) | 銘柄: | 万通 | 条件: | 新しい | モデル番号: | 圧縮空気貯蔵タンク | 重量: | 20トン | 容量: | 10 m3 | 次元(L*W*H): | 2.8*1.8メートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | ホワイト/グリーン/レッド |
包装
| 包装: | 圧縮空気貯蔵タンク:カスタマイズされた |
Compressed air storage tank
Product Description
Application of Compressed air storage tank
Widely used for storage and transportation in dairy, beverage, wine technology, with function of anti-seismic, anti-explosion, leakage-proof and cooling.
It is essential part of beverage manufacturing
Advantage of Compressed air storage tank
1. Corrosion resistant, durable, high in performance, easy to install and offered in different capacities
2. Humanized structure design & easy to operate
3. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation
4. PU Foam Insulation are available to keep temperature

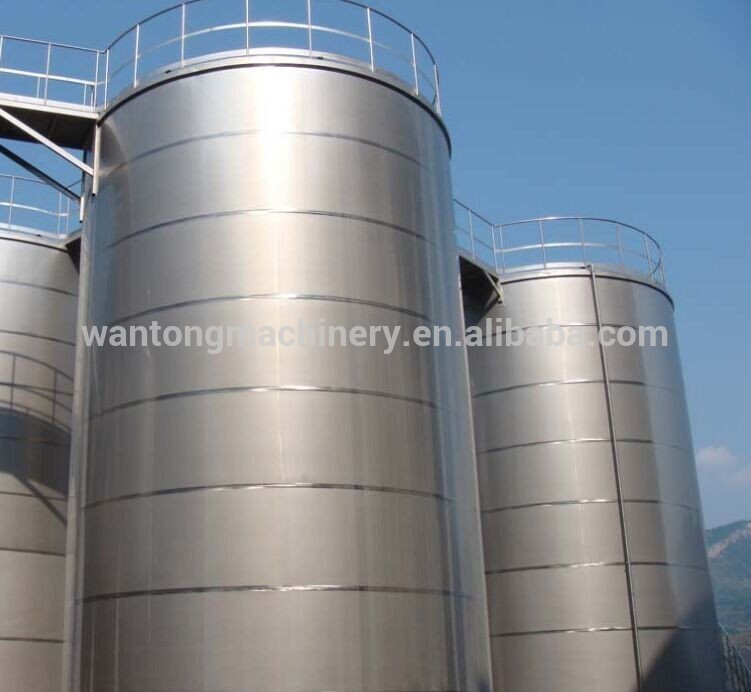

Liquid Storage Tank:
1. Capacity:5-100M3
2.WP:0.8-1.75MPa
3.Dimension(mm): Dia2216*L4405~Dia3520*L17585
4.Certification:BV/SGS/TUV

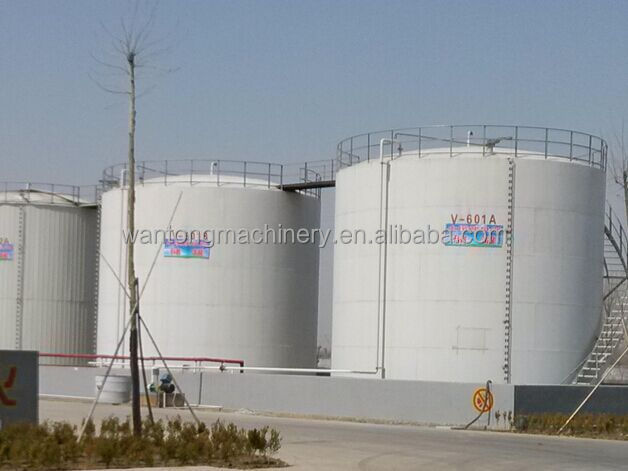

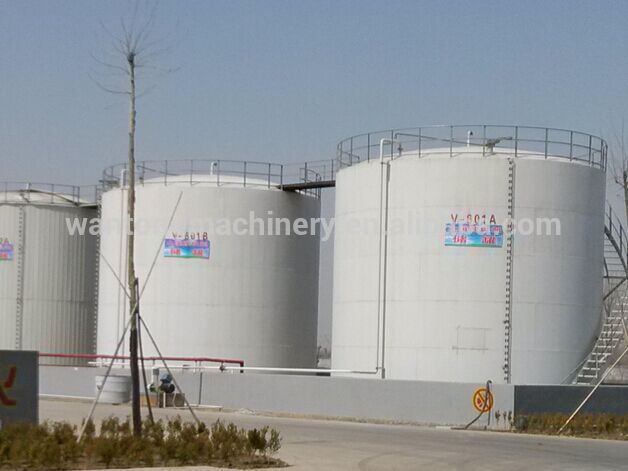

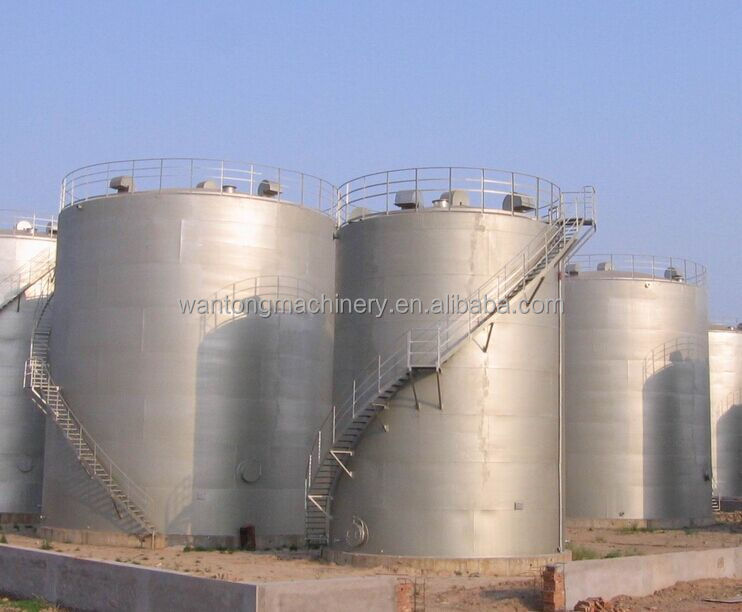

Oil Storage Tank:
Oil Storage Tank ivides into vertical tanks and horizontal tank.
Inner container is polishing to Ra0.45μm
Exterior adopt mirror board or frosting board for heat preservation
And thermal insulating materials can be filled according to users’ requirements.

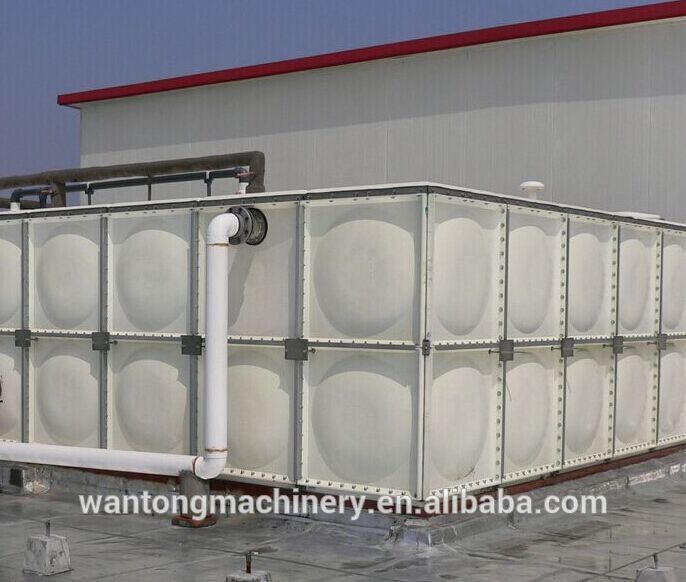

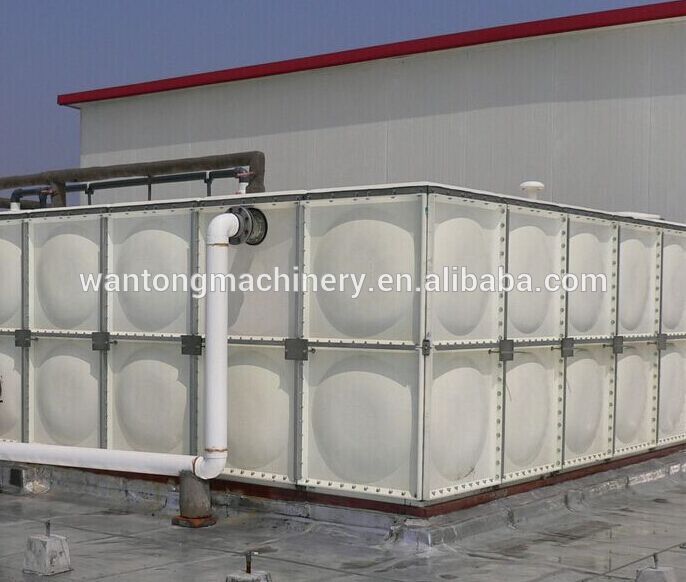

Technical Data of Water Tank
Type | WD-1000 | WD-2000 | WD-3000 | WD-4000 | WD-5000 | WD-6000 | WD-10000 | |
Cubage (L) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 10000 | |
Weight of equipments (kg) | 335 | 470 | 705 | 1060 | 1320 | 1550 | 2650 | |
Overall dimensions (mm) | Φ | 900 | 1200 | 1500 | 1600 | 1600 | 1800 | 2000 |
Width | ||||||||
Height | 2000 | 2800 | 2200 | 2500 | 2900 | 3000 | 3900 | |
Process of Water Tank
1 | Cutting Materials |
2 | Rolling Machines for Circling |
3 | Welding and NDT Inspection |
4 | Re-circling after Welding |
5 | Outer Vessel’s Abrasive Blasting and Anti-corrosive Painting for Outside Surface |
6 | Pipe Connecting and Assembly of Inner Vessel and Outer Vessel |
7 | Valves Installation |
8 | Filling |
9 | Vacuum-Pumping |
10 | Final Painting and Ready for Shipment |

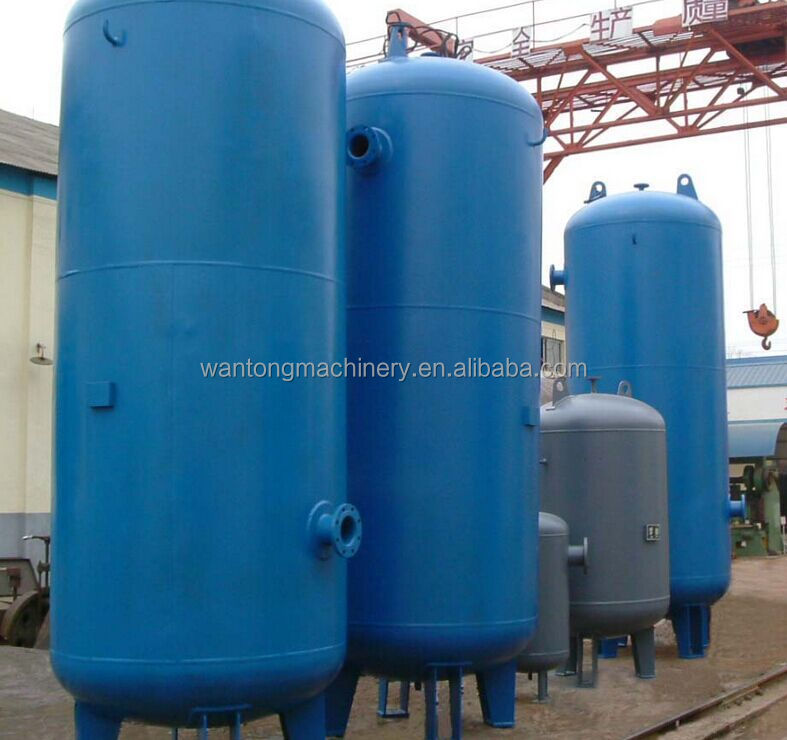

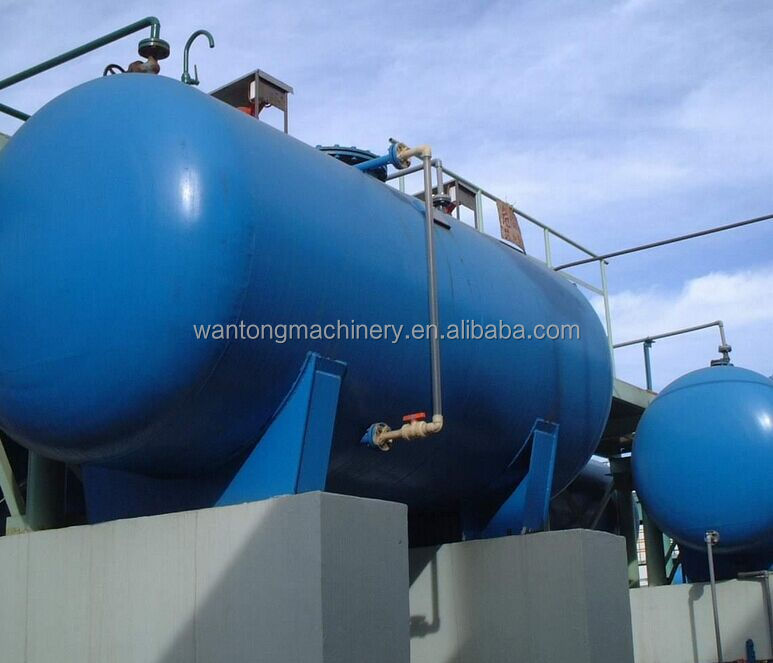

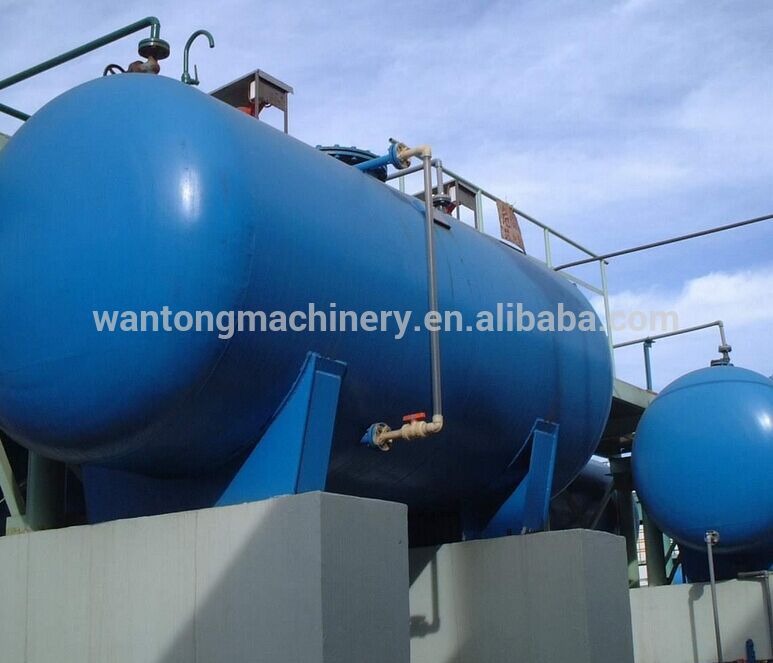

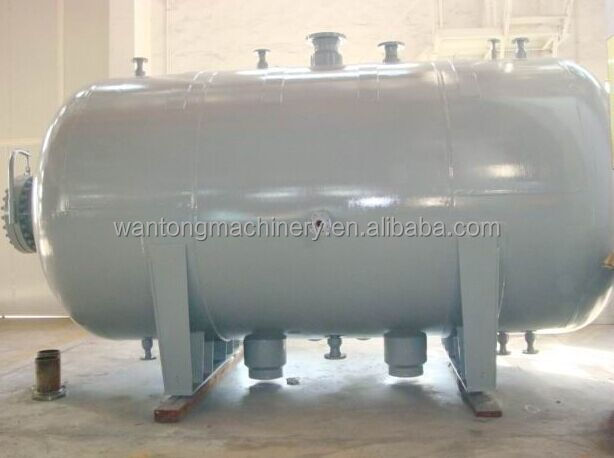

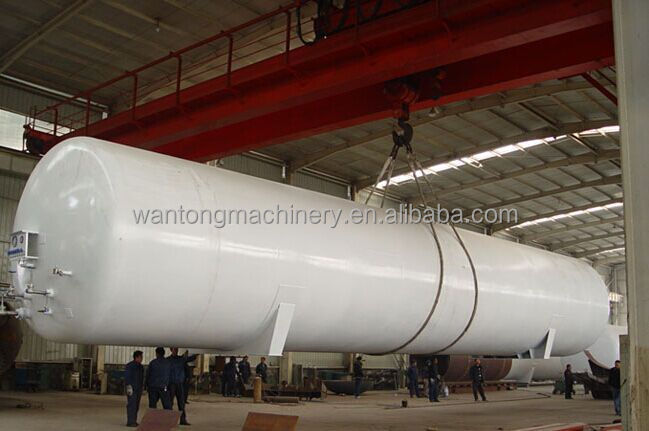

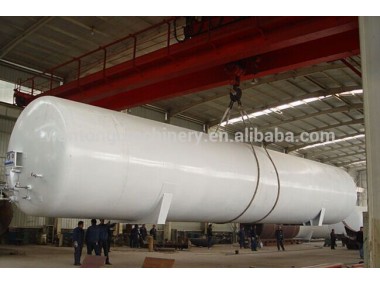

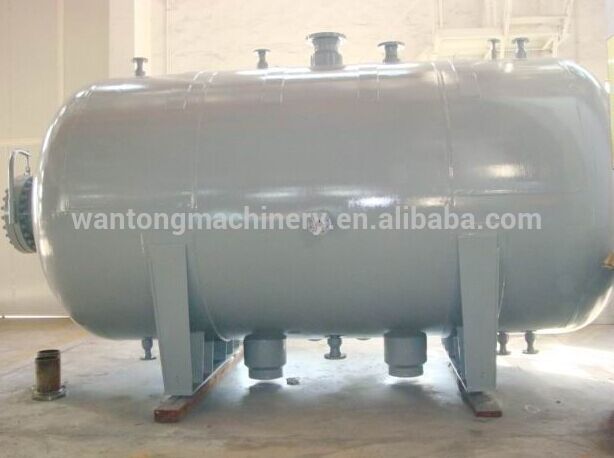

Photo of Compressed air storage tank
FAQ of Compressed air storage tank
1. Q: Manufacturer ?
A: Yes, professional factory in China
2. Q: Which area have you exported to ?
A: Europe, America, Africa, Asia, South America and Australia
3. Q: Any advantage ?
A: The Production area more than 4000 square meters, and 35 sets production equipments. We can supply the one-stop service from machining to welding
