原産地: | 中国(本土) | 銘柄: | clwlpg | 条件: | 新しい | モデル番号: | clw100lpgタンク | 重量: | 22901 | 容量: | 100立方メートル | 次元(L*W*H): | 13020*3740*3240 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 名: | lpgタンカー | 認証: | ccc・iso | タンカーの材料: | q345r16mniii | タンカーのサイズ: | Dn3200*20*13020 | 設計圧力: | Mps1.77 | 使用圧力: | ≤1.6 | 作業温度: | ≤50℃ | lpgディスペンサー: | プロパンガスタンカートラック | lpgトラックを使用: | lpgガスシリンダー | セミトレーラーlpgタンカー: | プロパンタンク |
包装
包装: | 裸woxコーティング |
Lpg tanker 100CBM
Advantages
1. Anti-corrosion coating surface treatment are used sand-blasting, painting, sweeping and other advanced technology.
2. High-quality domestic and imported the security annex to be seleced, comprehensive
3. Strictly to science and advanced construction technology, to ensure the lowest in the low temperature contraction rate, the high
4. Rigorous quality testing: A, B Class 100% weld ray detection, II level qualified. C, D Class weld 100% magnetic particle testing, I-level qualified
5. We also can produce according to customer needs for a variety of chassis converted to ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, butane, iso-butane, butene, isobutylene, butadiene , ethylene oxide, and most gas vehicle
Item | unit | Parameter | ||
Products name |
| LPG storage tank | ||
Products number |
| CLG3200-100 | ||
Filling medium |
| LPG(propane) | ||
Overall dimensions(L*W*H) | mm | 13020*3740*3240 | ||
Tank size (inner diameter*thickness*length) | mm | DN3200*20*13020 | ||
Volume | m3 | 100 | ||
Net weight | Kg | 22901 | ||
Designing pressure | Mps | 1.77 | ||
Working pressure | Mps | ≤1.6 | ||
Working temperature | °C | ≤50 | ||
Hydraulic test pressure | Mps | 2.22 | ||
Air test pressure | Mps | 1.77 | ||
Material of tank and accessory | Q345R,16MnIII | |||
standard | GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures | |||
accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc(the marked price is not including the accessory). | |||
Production cycle | Warranty | 10-15 days | 12months | |
FOB SHANGHAI | USD/SET |
his product is double-layer vacuum insulation container, and is suitable for storage of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas.
Product features
1. Space technology, advanced and reasonable container structure
2. Patented insulation technology, the insulation performance of the container can reach the leading level in the same industry
3. The valves and instruments adopt the famous brand products such as Chuankong brand to ensure the reliable performance of the container in the long-term use
Main technical parameters
1. Design temperature: as required Centigrade
2. Design capacity: 5m3~150m3

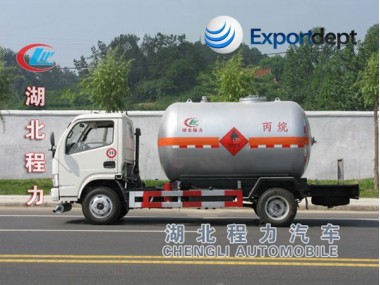

LPG sorage truck brief Introduction
- Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 100 cubic optional.
- Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification,inspection , test .the tank materials on physical and chemical tests such as: mechanical properties and chemical composition.
- the tank welded joints, welding line , tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
- seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
- A, B Class 100% ray weld inspection, II level qualified
- C, D Class welds 100% magnetic particle inspection, I level qualified
1.Safety valves can be equipped with lpg storage tank/ lpg tank, lpg storage tanker, lpg tanker, gas storage tank, bulk lpg storage tanks, bulk storage lpg tanks, lpg transport tank semi trailer , lpg transportation trailer , propane semi trailer , propane tank trailer , lpg gas tank container , gas tank container and lpg container.
2. LPG stands for Liquified Petroleum Gas. LPG is a hydrocarbon produced from the processingof natural gas and the refining of crude oil. Commonly called "propane," it is used for cooking
on grills and stoves, heating homes and even as a power source for automobiles.
It is relatively safe, but proper handling of LPG tanks will help to increase the safety margin.
3. Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), also referred to as simply propane or butane, is a flammable mixture of hydrocarbon gases used as a fuel in heating appliances, cooking equipment, and vehicles.
4. LPG is prepared by refining petroleum or "wet" natural gas, and is almost entirely derived from fossil fuel sources, being manufactured during the refining of petroleum (crude oil), or extracted from petroleum or natural gas streams as they emerge from the ground. It was first produced in 1910 by Dr. Walter Snelling, and the first commercial products appeared in 1912. It currently provides about 3%
Main technical parameters
1. Design temperature: as required Centigrade
2. Design capacity: 5m3~150m3
Pressure tank designed to close water cycle system, which has a balance of the water and the effects of stress, and avoid the relief valve multifarious open and automatic filling water valve frequent filling water.
A water tank for inflation the role of outside, still can rise to fill the role of water tank, tank filled with nitrogen gas, can obtain larger volume to accommodate expansion of water, high and low pressure tank available to pressure inside the system itself in parallel filling water.
This device each point control are interlocking reaction, automatic operation, and the pressure fluctuation range small, safe and reliable, energy conservation, economic effect is good.
Features:
1. Tanks: carbon steel, balloon: EPDM rubber
2. The maximum working pressure: 16 bar
3. Working temperature range:-100 °C
4. The filling pressure: 2 bar
Application
1. Used for liquid clarification and aseptic filtration.
2. Related products
3. Capsule type filter
4. Board type filter
Principle
1. Pressure tank is use of air compressibility tank to adjust and storage water and maintain pressure required
2. The force, so and that pressure water supply equipment, its role to water tower and high pool. Because of its water supply pressure tank is by compressed air to maintain, therefore, the installation height can not be restricted. Plus this equipment with less investment, high construction speed, easy tear open change, flexibility, a high degree of automation, very suitable for water supply, power supply normal small and medium-sized village water supply. But its adjust water small, pressure attenuation fast, pump start-up frequent, the operating cost is high, not suitable for water consumption and require the pressure stable users.
More questiones
No.1 Payment
We only Accept T/T or Western unio(30%as deposite, after Inspectiing at our factory ,pay the blance 70%) If you don't accepet, We sincerely welcome you to our factory for inspecting or discussing
No.2 Packing
Nude, Covered with max, small type can be put into 20"GP,or 40GP,40HQ,big type can be carried by bulk ship or RO-ROshipping or according to your requirement
No.3.Delivery Time
We have lots of truck in stock, delivery time is 7-15days as long
Remarks :
The above Infomation is just for your reference.We can manufacure the truck as eachyour request.
Any questiones, pls feel free to reach me ,It would be great pleasure to be on your service.
Any other question, pls contact me by following
