原産地: | 中国(本土) | 銘柄: | clwブランド | 条件: | 新しい | モデル番号: | CLG1800-15 | 重量: | 9365キログラム | 容量: | 15000リットル | 次元(L*W*H): | 1800*10*6220 (径/厚さ/長さ) mm | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 素材: | Q345R。16 mn。Q370R | 充填ミディアム: | 液化石油ガス(プロパン) | タイプ: | 水平lpg貯蔵タンク | アプリケーション: | lpg収納 | 他の名前: | presure容器 | 作動圧力: | ≤ 6 mpa | 作業温度: | -19〜50℃ | 認証: | GB-150 | 設計された圧力: | 1.77 mpa | 容量のための選択: | 10-100cbm |
包装
包装: | 裸梱包でワックス |

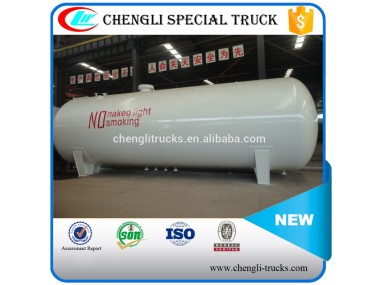

15000 LITER (15m3) 5985KGS capacity lpg gas tank
we can customize the capacity of lpg storage tank from 10cbm to 100cbm
Product Description
1,Detaild specification
5.985TONS LPG TANK FOR PROPANE (15M³) | ||||||
Item | Data | Item | Data | |||
Whole body parameter | Product model | CLG1800-15 | liquid level meter | Model | UHZ-518C14 | |
Overall dimension(mm)(dia/thicness/length) | 1800*10*6220 | Style | Magnetic level gauge | |||
Bare weight (Kg) | 3380 | Nominal pressure | 2.5Mpa | |||
Standard | C3 | Test range | 50-2300mm | |||
Design Pressure | 1.77Mpa | Precision | 2.5 | |||
Max. working pressure | 1.61Mpa | Safety valve | Model | A42F-2.5-80 | ||
Design temperature | #VALUE! | Style | Built-in wide-open style | |||
Filling medium | Liquefied petroleum gas(propane) | Nominal pressure | 2.5 Mpa | |||
Nominal diameter | DN80 | |||||
Volume | 15000liter(15 cube) | Open pressure | 1.68-1.76 Mpa | |||
Heat treatment | whole tank | Closed pressure | ≥0.8 tims of the open pressure | |||
Filling factor | 420kg/m3 | Loading and unloading device | Nominal diameter | Liquid input pipe | DN57 | |
Tank boday and Compression component material | 16MnR | Liquid output pipe | DN80 | |||
Hydraulic pressure test | 2.22 Mpa | Air input pipe | DN50 | |||
Air tightness test pressure | 1.77 Mpa | Discharge sewage pipe | DN80 | |||
The cylinder design thickness | 11.96mm | Discharge air pipe | DN80 | |||
The head design thickness | 12mm |
2,Drawing interpretation
