| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | depai | 条件: | 新しい | モデル番号: | DP-T001 | 重量: | 各マシン | 力(W): | 各マシン | 保証: | 1年 | 次元(L*W*H): | 各マシン | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | つまようじ機色: | ブルー | 生産性: | 437,500ピース/時間 | つまようじ仕様: | 2ミリメートル直径、65ミリメートルの長さ | パッキング: | 木製ケース |
包装
| 包装: | 標準輸出木製ケース用爪楊枝製造機 |
2013 bamboo toothpick making machine/bamboo toothpick production line model DP-T001

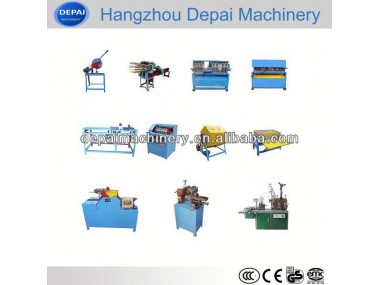

The toothpick machines are used for producing bamboo toothpicks. The complete equipments consist of 11-17 machines, some of them are optional according to your actual situation. You can make two different kinds of toothpicks: one-end-sharp and two-end-sharp. You can make one of them just change one machine only! And the size of the toothpick is 2mm diameter, 65mm length. The machines can produce 3,500,000 pieces toothpicks every 8 hours by 8-11 labors.
Machine 1: Raw bamboo sawer
| Model | DP791 |
| Power | 1.5KW |
| Machine dimension | 120*50*105cm |
| Saw blade dimension | 400*25*2*160T |
| Net weight | 58kg |
Machine 2: Bamboo sharpener:
| Model | DP388 |
| Power | 4KW |
| Machine dimension | 310*70*125cm |
| Feeding speed | 1.5m/s |
| Net weight | 650kg |
Machine 3: Fixed thickness and width slicer
| Model | DP275 |
| Power | 3.3KW |
| Machine dimension | 130*65*105cm |
| Delivery rate | 85m/min |
| Net weight | 310kg |
Machine 4: Bamboo-wool shaper former
| Model | DP144 |
| Power | 7.1-9.1KW |
| Machine dimension | 110*65*110cm |
| Delivery rate | 60m/min |
| Net weight | 400kg |
Machine 5: Ruler fixer
| Model | DP741 |
| Power | 0.75KW |
| Machine dimension | 140*66*88cm |
| Saw blade dimension | 300*25*2*150T |
| Net weight | 80kg |
Machine 6: Toothpick ruler fixer
| Model | DP746 |
| Power | 3.37KW |
| Machine dimension | 65*65*91cm |
| Saw blade dimension | 180*25.4*1.5*80T |
| Net weight | 125kg |
Machine 7: Toothpick polisher
| Model | DP516 |
| Power | 1.1KW |
| Machine dimension | 130*110*130cm |
| Cubage | 0.56 cubic meter |
| Net weight | 130kg |
Machine 8: Put toothpick in order
| Model | DP948 |
| Power | 0.55KW |
| Machine dimension | 100*100*75cm |
| Ordering speed | 20,000 pcs/min |
| Net weight | 80kg |
Machine 9: Toothpick sharpening machine
| Model | DP843 |
| Power | 2.87KW |
| Machine dimension | 132*71*106cm |
| Sharpening speed | 2,100 pcs/min |
| Net weight | 335kg |
Machine 10: Blade sharpener
| Model | DP502 |
| Power | 0.37KW |
| Machine dimension | 150*32*3 |
| Carborundum grinding wheel | 0.56 cubic meter |
| Net weight | 45kg |
Machine 11: Toothpick packing machine
| Model | DP842 |
| Power | 0.55KW |
| Packing speed | 1-2pcs/pack, 100-300 pack/min |
| Cubage | 0.56 cubic meter |
| Net weight | 300kg |
