• EPQ-1650/2150水平発泡切断機用マットレス-レーザーの打抜き機
    商品番号: 13334430
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 切断の厚さ: 2〜200ミリメートル 銘柄: esun
    条件: 新しい 適用: レーザーの切断 モデル番号: EPQ-1650/2150
    提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため カッティング速度: 0-25メートル/分 製品名: 水平発泡切断機用マットレス
    ブランド: esun 電圧: 380ボルト、3 p、50 hz 切断高さ: 1200ミリメートル
    切断厚さ: 2〜200ミリメートル 切削速度: 0-25メートル/分 マシンの重量: 2000キログラム/2200キログラム
    マシンサイズ: 異なるモデルの異なるサイズ

    包装

    包装: ウッドケース

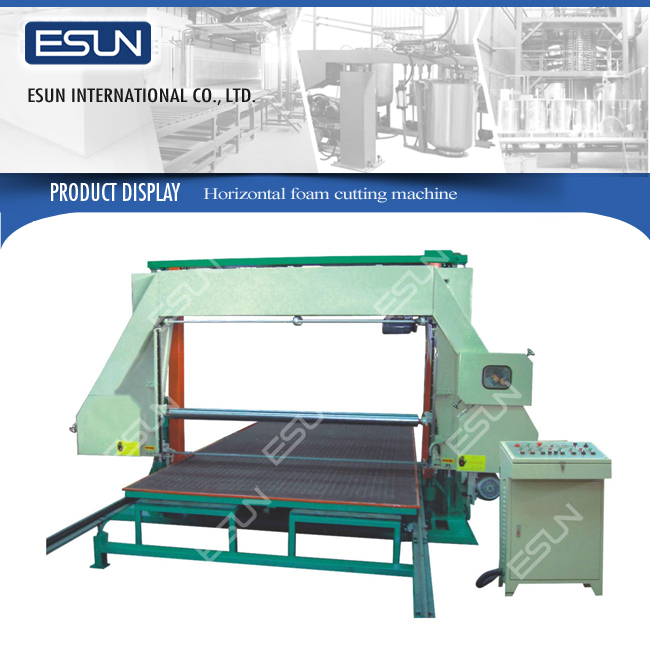

    EPQ-1650/2150 Foam Cutting Machine for Mattress

    This machine adopts the advanced imported inverter timing controlled techniques. It is used for the reciprocating action for flatly slicing of quadrate foam. Fully automatism number controlled. It's operation is handy and cutting is exact. This machine can also be supplied with pressure roller, this machine choose touc screen and vacuum system.

    Technical data at a glance

    Model

    EPQ-1650

    EPQ-1650P

    EPQ-1650D

    EPQ-2150

       EPQ-2150P

    EPQ-2150D

    Cutting foan size

      W1650*L2000

    mm

    W1650*L2000

    mm

    W1650*L2000

    mm

    W2150*L3000

    MM

    W2150*L3000

    MM

    W2150*L3000

    MM

    Cutting height

    H1200MM

    H1200MM

    H1200MM

    H1200MM

    H1200MM

    H1200MM

    Cutting speed

    0-25m/min

    0-25m/min

    0-25m/min

    0-25m/min

    0-25m/min

    0-25m/min

    Cutting thickness

    2-200mm

    2-200mm

    2-200mm

    2-200mm

    2-200mm

    2-200mm

    Machine weight

    2000kg

    2000kg

    2000kg

    2200kg

    2200kg

    2200kg

    Machine size

    5800*3500*2400mm

    7800*4200*2400mm

    Air suction system

    No

    No

    with press  roller

    Yes

    with press  roller

    No



    No

    with press  roller

    Yes

    with press  roller

    Control type

    Electric

    PLC-Touch Screen

    PLC-Touch Screen

    Electric

    PLC-Touch Screen

    PLC-Touch Screen

    Total power

    7.32kw

    7.32kw

    10.92kw

    7.32kw

    7.32kw

    10.92kw
