彫版区域: | 600 × 900ミリメートル | 原産地: | 中国(本土) | CNCまたはない: | はい | 銘柄: | qx | 条件: | 新しい | 適用: | レーザーの彫版 | モデル番号: | QX6090 | 彫版の速度: | 0-1000ミリメートル/秒 | 冷却モード: | 水冷却 | 認証: | ISO, CE, fda | 適当な材料: | ガラス, 革, Crytal, Plexiglax, 合板, アクリル, ゴム, MDF, ペーパー, 木, 石, プラスチック | 支えられる写実的なフォーマット: | AI, BMP, DXF, PLT, jpg、gif、pgn、tif | レーザーのタイプ: | 二酸化炭素 | モデル: | QX6090 | 作業エリア: | 600 × 900ミリメートル | 標準レーザーパワー:: | 60ワット | オプションのレーザーパワー:: | 40ワット、80ワット、100ワット | 木材co2レーザー彫刻: | 小さなレーザー彫刻機 | レーザー切断機: | レーザー彫刻機 | レーザー機用彫刻: | アクリルレーザー彫刻機 | co2レーザーマシン: | ホット販売モデルレーザー機 | 革レーザー彫刻機: | プラスチックレーザー彫刻機 | fabrcレーザー彫刻機: | 布レーザー彫刻機 |
包装
包装: | 輸出合板パッキング |

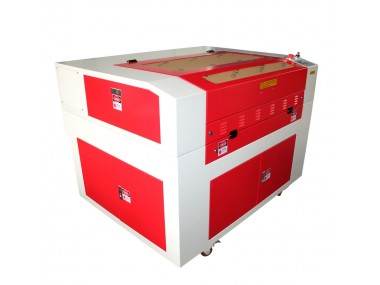

Small CO2 Laser Engraving Machine-------QX6090 (600900mm) 60W
A: Main application:
Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline, marble, leather, cloth, double-color board, etc. Nonmetal materials
B: Parts and Configuration Included:
1) Double Red Pointer, Wast collect box
2) with front and back feature for super-long materials processing
3) limit switch for safe processing
4)Seperate control system box
5) DSP Offline system with USB
6) Water flow sensor
7) Slat work table with funnel
8) Air pump, water pump, exhaust fan,tool box, etc.
C: Optional Parts:
1)Motorized up&down table
2) Rotary clamp for engraving cylinders
3) Water chiller CW3000 or CW5000 for cooling tube
D: Trading Terms:
@ Delivery time:
It is 5-10 working days after your order.
@ Favorable Policy:
We'd like to give you some discount or send you some spare parts free of charge according to quantity of your order, especially for distributors.
@ Warranty:
12 month warranty for every part of machine, 3 months for laser tube, mirrors, lens
@ After-sales service:
CD, Video, User Manual to guide you how to install, operate, maintain machine step by step
E: Techncial Parameter:
Product model | QX6090 |
Maxi working area | 600*900mm |
Laser power (standard configuration) | 60W |
Options: 40W, 80W, 100W | |
Laser Types | Hermetic And Detached CO2 Laser Tube |
Engraving speed | 0-75,000mm/min |
Cutting speed | 0-40,000mm/min |
Location precision | ≤0.01mm |
Resetting positioning accuracy | ≤0.01mm |
Power supply | AC 220V/50Hz |
Gross power | <1,000W |
Operating temperature | 0 - 45° |
Operating humidity | 5 - 95% |
Minimum shaping character | English 1×1mm |
360°slope engrave | Yes |
Driving system | stepper |
Cooling mode | Water-cooling and protection system |
Auxiliary Devices | Exhauster And Exhaust Pipe |
Software | Lasercut 5.3 |
Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Optional | Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, Filtrator |
Optional water cooling system | water pump, water chiller, air cooler |
F: Standard Parts of Laser Machine:
