彫版区域:	30mm/30mm-300mm/300mm	CNCまたはない:	はい	原産地:	中国(本土)
適用:	レーザーの彫版	銘柄:	htlaser	モデル番号:	Ht-f10/ht-f15/ht-f20/ht-f30/ht-f50/ht-f100
冷却モード:	空気冷却	認証:	CE, ISO, fcc、 fda	適当な材料:	ペーパー, プラスチック, 金属
支えられる写実的なフォーマット:	PLT, DXF, BMP, AI	提供される売り上げ後のサービス:	利用できるエンジニア機械類を海外に整備するため	条件:	新しい
彫版の速度:	<7000ミリメートル/sの	次元(L*W*H):	700*200*500mm	レーザーのタイプ:	繊維レーザー

包装

包装:	standrad輸出木製ケース

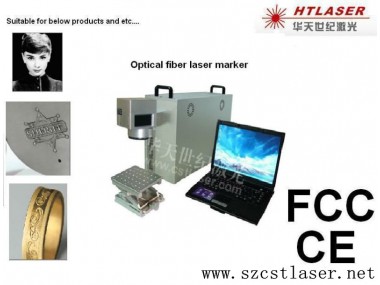

IntroductionThe optical fiber laser marker is the third generation laser marker system developed by our company with the most advanced technology in the world. It uses optical fiber laser to output laser and realizes marking function through high speed scanning galvanometer system. The optical fiber laser marker features high electro optic conversion efficiency, air cooling, small size, high quality output beam, high reliability, long service life and energy saving. It can carve metal materials and certain nonmetal materials and is widely used in fields that have high requirement on depth, smoothness and fine, such as stainless steel mobile phone overlay, clock and watch, mould, IC, mobile phone keypad, etc. Bit map marking can carve beautiful pictures on the surfaces of metal and plastic, and the marking speed is 3-12 times of the speed of traditional first generation lamp pump marker and second generation semiconductor marker.



FeaturesFiber optic laser is used to output laser, featuring high electro optic conversion efficiency, small size and high light beam quality.



Suitable materials and applicationIt is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marking, etc.



Technical parameters

Model	HT-F10	HT-F15	HT-F20	HT-F30	HT-F50	HT-F100
Laser power	10W	15W	20W	30W	50W	100W
Laser wavelength	1060nm
Repeating frequency	0-100KHZ
Light beam quality	<2			<3		<5
Carving range	30mm/30mm-300mm/300mm
Carving line speed	≤7000mm/s
Minimum line width	0.01mm
Minimum character	0.15mm
Repeating precision	±0.002
Power supply	90-260V/50Hz-60Hz single
Integrity power	500W				1000W
Craving depth	≤0.3mm			≤0.5mm	≤1mm
Operation system	Win98/Win2000/WinXP
Cooling method	Air cooling
Control interface	Standard USB port



 Exhibition room





Videos:



How to operate Model C:

 http://v.youku.com/v_show/id_XNzU4MTY3ODY0.html



Marking on a dental plier(Model C):

http://v.youku.com/v_show/id_XNzU4NTgwOTM2.html



Marking on a dental plier(Model E):

http://v.youku.com/v_show/id_XNzU4MTYyMDE2.html



Cutting a aluminium sheet / 1mm thick  (HT-F50 / 50W ):

http://v.youku.com/v_show/id_XNzU4NTQ3NDAw.html





Marking IMEI number,please check the videos:



http://v.youku.com/v_show/id_XODAyMzk5OTE2.html



http://v.youku.com/v_show/id_XODAyNDA4NTIw.html



http://v.youku.com/v_show/id_XODAyNDE3OTI0.html





.....  More information please contact me!
