| 原産地: | 中国(本土) | 銘柄: | EFR | モデル番号: | ZX1450 | 長さ: | 1400mm | 直径: | 80mm | 寿命: | 10000時間 | 保証期間: | 300日10months | 出力電力: | 100W | 最高力: | 120W | 技術: | 触媒 | 材料: | ガラスに金属のシーリング | 波長: | 10.6um | 適用: | レーザ溶接 | レーザーのタイプ: | 二酸化炭素 |
包装
| 包装: | カートンか木の場合 |

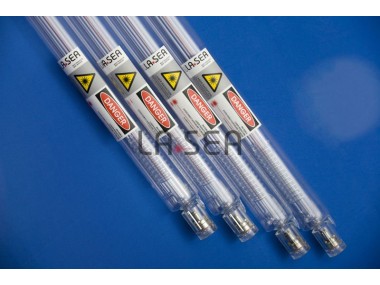

ZX series co2 laser tubes with long-life 1000 hours, enhanced type have been researched and developed by our company for three years and brought formally into operation in May,2011. Catalyst plated on the discharging tube makes the laser tube greatly prolong its working lifespan.
Parameter List for Long Lifespan ZX Series CO2 Laser Tubes
Model
| Length (mm)
|
Outer Diameter(mm) | Output Power(W)
| Maximum Power(W)
| Operating Current (mA)
|
Catalyst |
ZX-1250 | 1200±2 | Ø80±2 | 80 | 95 | 26 |
Yes
|
ZX-1450 | 1400±2 | Ø80±2 | 100 | 120 | 28 | |
ZX-1650 | 1600±2 | Ø80±2 | 130 | 150 | 30 | |
ZX-1850 | 1800±2 | Ø80±2 | 130 | 180 | 30 |
Main Features:
1. Stability: The tube blanks are made of the Germany glass tubes, and applied U.S. reflection mirrors and output lenses.
2. High power: higher 40% than other similar products with the same length.
3. Long-lifetime: The catalyst plated in the discharge tube make it more stably and the working lifetime up to 10,000 hours, and ensures that the power of the laser tube has no attenuation during long time working.
4. Good Spot mode and good beam quality.
5. High performance-to-price
6. Application: Laser engraving, laser cutting, laser drilling.etc
Lifespan: 10000 hours
Warranty period: 300 days
We manufacture, sell and service co2 lasers and co2 laser tubes worldwide.
We manufacture co2 laser tubes with hard seal,long life ,glass to metal technology.
We make them OEM for Original Equipment Manufacturers with OEM branding.
We also manufacture 'dro-in replacement' laser tubes for other brands of CO2 lasers.
