| 原産地: | 中国(本土) | 銘柄: | timeway | モデル番号: | 3M9735Bx130 | 重量: | 2800キログラム | 条件: | 新しい | 次元(L*W*H): | 2800 × 1050 × 1700ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 研削機: | シリンダーヘッド&ブロック表面 |
包装
| 包装: | 木製ケース (こと が燻蒸) |

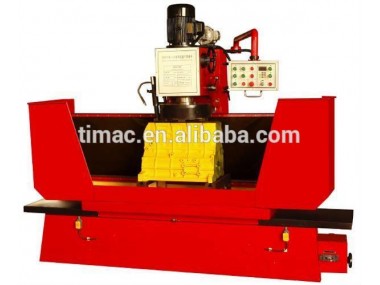

1.This machine is accurate and wide use. It makes possible to solve mostly grinding jobs, and it is optimal and economic choice.
2. This machine is characterized by automatic reciprocating movement of table which is electric motor; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up-down movement of grinding head .
3. It has two different grinding procedures; with grinding wheel ; insert milling cutter.
4. 700rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
5. 1400rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.
Specification | 3M9735Bx130 | 3M9735Bx150 |
Working table size | 1300 x500mm | 1500500mm |
Max working length | 1300 mm | 1500 mm |
Max. width of grinding | 350 mm | 350 mm |
Max height of grinding | 800 mm | 800 mm |
The vertical moving distance of grinding head | 60 mm | 60 mm |
The vertical moving distance of spindle box | 800 mm | 800 mm |
Spindle speed | 1400/700 r/min | 1400/700 r/min |
Transverse moving speed of working table | 40-900 mm/min | 40-900 mm/min |
Overall dimensions(LxWxH) | 28001050x1700 mm | 30501050x1700 mm |
Packing dimensions(LxWxH) | 31001200x1850 mm | 33501200x1850 mm |
N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |
