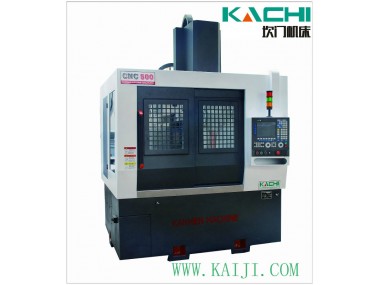

| 原産地: | 中国(本土) | 銘柄: | かち | モデル番号: | cnc500 |
包装
| 包装: | パッケージ木 |
main specifications and parameter : |
|
| |
maximum rotary diameter over bed | mm | Φ550 | |
maximum diameter of processing dish pares | mm | Φ500 | |
maximum work-piece length | mm | 500 | |
maximum stroke |
|
| |
Z axis | mm | 600 | |
X axis | mm | 350 | |
Main motor specifications and models |
| 4022ZXD10-M5JB 22kW | |
Spindle speed range | r/min | 60-1250 | |
Spindle nose |
| A18 | |
Servo-motor specifications and models |
|
| |
Z axis |
| GAM-15 (band brake) 1.5kW | |
X axis |
| GAM-15 1.5kW | |
maximum fast of Z axis | m/min | 16 | |
maximum fast of X axis | m/min | 12 | |
Electric turret model |
| HAK23200-110 | |
Size of toolbar section |
| 25 × 25 | |
Dimension of machine | mm | 2200×2300×3000 | |
Net weight of machine (about) | kg | 5500 | |
