原産地: | 中国(本土) | 銘柄: | bestlink | モデル番号: | Pyt-20t | 用法: | 鍛造ドリルロッドカラー | アプリケーション: | 鉱業、 の採石場、 建設 | シャンク: | Hex22*108 | 押圧力: | 20t | 最大圧力: | 200mpa | パワー: | キロワット5.5 | 操作方法: | 油圧 | 材料: | 鉄 | 重量: | 少ない250キログラム | タイプ: | ロッドマシンを作る |
包装
包装: | 販売用の木製ケースを再構築するシャンクドリルロッドhex22*108製造機 |

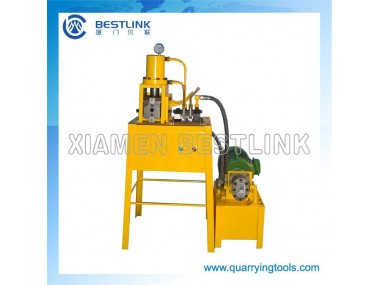

Sales Rebuild Drill Rod Hex22*108 Shank Making Machine
Products Feathers
This Iron Rod Making Machine is to reforging the broken drill rod shank, can help you to recycle use the drill rod,it can rebuild the shank H22*108, which is your economical choice.
It is light-weight, but have high production efficiency. It is very popular and widely used by quarry people all overy the world. It sells very well in both China and overseas.
Technical data:
Model | PYT-20T |
Size | 60cm*60cm*120cm |
Weight | 107+100 kg (pump pack + forging machine) |
Power (kw) | 5.5kw |
Cylinder inner diameter | 100mm |
Max pressure | 200Mpa |
Working Pressure | 160Mpa |
Hydraulic oil | 68# anti-wear hydraulic oil |
Pressing force | 20T |
Upsetting force | 20T |
Efficiency | 90 bars/hour |
online Video Show:
You can check how this machine working online, here is the address:
http://youtu.be/iwt8m3nQLis
Pictures for Workflow:
Here is the pictures, to show you how to forge the drill rod:

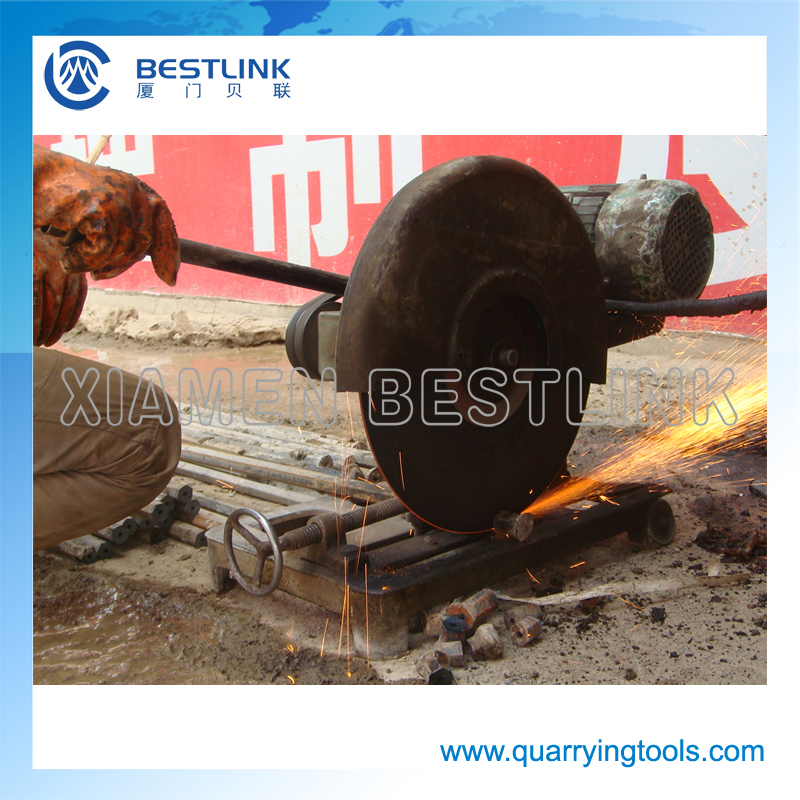

Step 1. Cutting the broken drill rod.
