• 傾斜アルミニウム溶解と保持炉-工業炉
    商品番号: 13320733
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380v 原産地: 中国(本土) 銘柄: giansun
    モデル番号: Gs-mf-02 重量: 20トン 力(W): キロワット200
    タイプ: ガス炉 保証: 10年 条件: 新しい
    認証: iso9001 次元(L*W*H): 5*4*4m 使用法: 溶ける炉
    提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 建設: 四角丸 インストール容量: 5から100トン
    融解速度: 2-10t/h 燃焼材: 天然ガラス エネルギー消費量: 55から60㎥/トンal
    容量/day: 20〜200トン

    包装

    包装: 標準的な輸出パッケージ
     Product Description

    Introduction

    Energy efficient and environmental friendly regenerative furnace, using the technology of regenerative heat transferring,based on aluminum alloy remelting process, can provide maximum full load heat at heating stage, which makes aluminum material melt fast, then after reaching the preset temperature it will automatically transfer to heat supplying process, which effectively controls heat supplies and flue gas emissions. It provides accurate control of pressure, temperature, material melting speed. Extended function can realize inside-oven video monitoring and long-distance remote control.



    Specifications

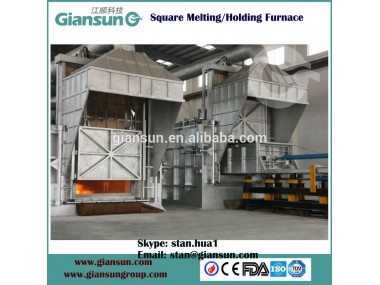

    Tilting aluminum holding furnace
    1.heat storage system
    2.newest efficiently burners
    3.melting alu ingot and holding.

    Tilting aluminum holding furnace



    1. Furnace application ---melting alu ingot and holding.

    2. The furnace body --8-10mm armor plate and shaped steel

    3. Melting pool-- adopt the first-degree aluminum brick,

        outer --adopts lightweight heat preservation brick.

    4. Capacity--2-60tons/furnace (aluminum water)

    5. The dimension of pool(L×W)---ON REQUEST

    6. The depth of pool--about 650mm

    7. Structure form--tilting vault block furnace

    8. Fuel--natural gas ,heavey oil,diesel,LPG,coal gas

    9. Burning capacity-- 6,000,000Kcal/h(max)

    10. Piece consumption---510,000-680,000 Kcal/h /T

    11. Melting speed--4-7t/h

    12. control type--PLC(automatic or manual)

    13. Exhaust smoke temperature--less than 200°C

    14. Burning form--one coupe muzzle burning by turns

    15. Air preheat temperature--800-1100°C

    16. the furnace side temperature--room temperature+45°C



    Automatic casting system:

    傾斜アルミニウム溶解と保持炉仕入れ・メーカー・工場 傾斜アルミニウム溶解と保持炉仕入れ・メーカー・工場 傾斜アルミニウム溶解と保持炉仕入れ・メーカー・工場 傾斜アルミニウム溶解と保持炉

     Our Services

    Jiangyin Giansun Founding equipment co.,LTD,one of branch factory of Giansun group,provide turn-key solutions for aluminum casting factory.

    We've undertook hundreds of casting project and earn much experience.

    Our company provides layout planning of aluminum alloy casting & melting project for whole plant equipment. We are professional at whole plant casting & melting equipment served remelting and recasting aluminum alloy bar and ingot equipment, such as liquid aluminum transfer pump, high frequency vibration pump of liquid aluminum, melting equipment, in-line degassing device, filter equipment, casting equipment, homogenizing equipment.
