| 電圧: | 380/220ボルト | 原産地: | 中国(本土) | 銘柄: | haohua | 条件: | 新しい | モデル番号: | さまざまな種類 | 重量: | それは異なる異なる半径 | 力(W): | 数百kwため各ストランド | 保証: | 1年 | 認証: | iso | 次元(L*W*H): | それは異なる異なる半径 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 非標準製品: | 別の半径 | 機能: | 異なる形状:正方形、 ラウンド、 長方形、 スラブ | 金型銅管: | ccm銅管/銅金型チューブ |
包装
| 包装: | 要件に |

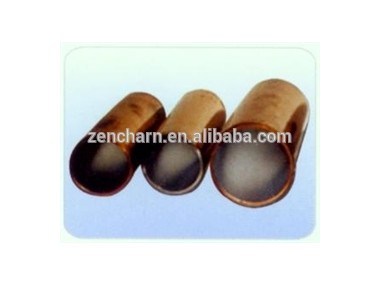

mould copper tube

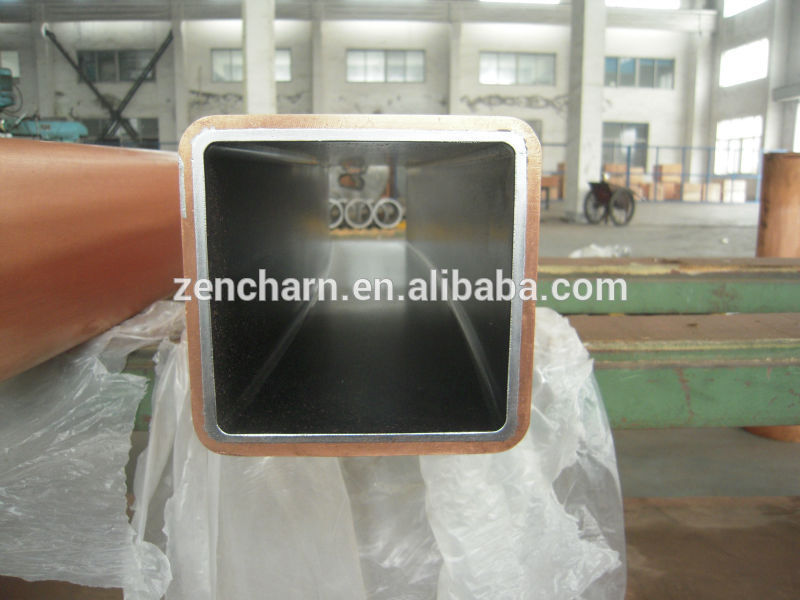

CCM mould copper tube
copper mould tube
80 workers + 25 technicians specialize on making CCM crystallizer, CM water jacket, ccm copper mould tube in a workshop of 8,500 m2.
CCM water jacket is seamless.
with ISO9001:2000 cetificate
Main components
1. Ladle turret
2. Tundish car
3. Tundish
4. Crystallizer
5. Secondary cooling zone
6. Vibration table
7. Piping for water system
8. Pneumatic straightener
9. Hydraulic system
10. Dummy bar storing device
11. Tundish on-line baking device
12. Tail billet pinch roller
13. Transfer table
14. Flame cutting machine
15. Hydraulic shear
16. Billet delivery roller and cooling bed
17. Billet moving device
18. Tilting gear

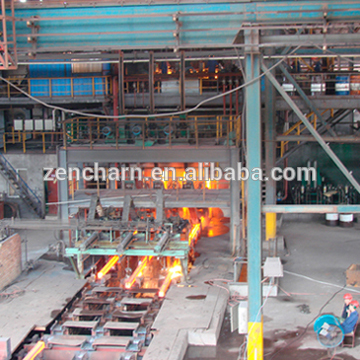

R8m Continuous Casting production line R8m
Technology process features
1. The size of the billet that can be cast: big square billets and rectangle billet of
150 x 150 mm2, 150 x 280 mm2, 150 x 320 mm2, 250 x 250 mm2 etc.
2. Steel quality to be cast: high quality silicon steel, alloy structural steel, carbon
tool steel, spring steel, bearing steel, etc
3. Machine model: one set of 3 machines 3 strands
4. Radius of casting machine: 8 meters
5. Average casting speed: 2.22.8 m/min
6. Designed casting speed: 1.23.5m/min
7. Annual output: 600,000 tons
8. Overflow percentage: ≤0.5%
9. Heats for continuous casting: ≥8 heats
10. product quality: up to the enterprise standard and up to the countries quality standard
R6m Continuous Casting production line R6m
1. The size of the billet that can be cast: 120 x 120 mm2 , 150 x 150 mm2,
160 x 160 mm2,
2. Steel quality to be cast: Q235, 20MnSi, low alloy steel,
3. Machine model: 4 machines 4 strands fully arc type small square billet
continuous casting machine
4. Radius of casting machine: 6 meters
5. Average casting speed: 2.7 m/min
6. Max casting speed: 3.6m/min
7. Annual output: 600,000 tons
8. Overflow percentage: ≤0.5%
9. product quality: up to the enterprise standard and up to the countries quality standard
