電圧: | 380ボルト/220ボルト | 原産地: | 中国(本土) | 銘柄: | フランク | 製品容量: | 1メートル/分 | 適用: | スレッド処理 | モデル番号: | 200,150、80,40 | 重量: | 1000キログラム、1700キログラム、1900キログラム、3000キログラム | 力(W): | 5.5kw | 保証: | 1年 | 条件: | 新しい | 認証: | ce | 次元(L*W*H): | 1350*1210*1050 (mm)の2000*1780*1670 (mm) | メインモータ電源(kw): | 11 | 油圧モータ電源(kw): | 5.5 | 冷却ポンプモータ電力(ワット): | 120 |
包装
包装: | 木製ケース |
Product Description
Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc.
Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/mm2.
Technical parameters:
40
Project | Specifications or parameters | |
Model | 40 | |
Max rolling pressure(KN) | 140 | |
Scope of thread rolled | Max outer diameter(mm) | Φ36mm |
Mini outer diameter(mm) | Φ5mm | |
Scope of the rolling wheel | Outer diameter(mm) | Φ135-Φ170mm |
Aperture(mm) | Φ54mm | |
Max width(mm) | 100mm | |
Spindle | Tilt Angle | ±5° |
center distance between the two spindle(mm) | 120-200mm | |
Revolutions(r.p.m) | (change gears)36.47.60.78 | |
Rolling time(S)(m)(H) | 0.1-99.9 | |
Idle time(S)(m)(H) | 0.1-99.9 | |
Hydraulic feed | Max feed speed mm/S | 5mm/s |
Back speed mm/S | 6mm/s | |
Trip(mm) | 0-8mm | |
Main motor power(KW) | 4 | |
Hydraulic motor power(KW) | 2.2kw | |
Cooling pump motor power(W) | 90w | |
Machine dimensions (mm) | 1350×1210×1050(mm) | |
Machine Weight(Kg) | 1000kg |
80
Project | Specifications or parameters | |
Model | 80 | |
Max rolling pressure(KN) | 150 | |
Scope of thread rolled | Max outer diameter(mm) | Φ48mm |
Mini outer diameter(mm) | Φ5mm | |
Scope of the rolling wheel | Outer diameter(mm) | Φ135-Φ170mm |
Aperture(mm) | Φ54mm | |
Max width(mm) | 100mm | |
Spindle | Tilt Angle | ±3° |
center distance between the two spindle(mm) | 120-240mm | |
Revolutions(r.p.m) | (change gears)36.47.60.78 | |
Rolling time(S)(m)(H) | 0.1-99.9 | |
Idle time(S)(m)(H) | 0.1-99.9 | |
Hydraulic feed | Max feed speed mm/S | 5mm/s |
Back speed mm/S | 6mm/s | |
Trip(mm) | 0-8mm | |
Main motor power(KW) | 4 | |
Hydraulic motor power(KW) | 2.2kw | |
Cooling pump motor power(W) | 90w | |
Machine dimensions (mm) | 1500×1380×1410(mm) | |
Machine Weight(Kg) | 1700kg |
150
Project | Specifications or parameters | |
Model | 150 | |
Max rolling pressure(KN) | 150 | |
Scope of thread rolled | Max outer diameter(mm) | Φ60mm |
Mini outer diameter(mm) | Φ5mm | |
Scope of the rolling wheel | Outer diameter(mm) | Φ135-Φ170mm |
Aperture(mm) | Φ54mm | |
Max width(mm) | 100mm | |
Spindle | Tilt Angle | ±5° |
center distance between the two spindle(mm) | 120-240mm | |
Revolutions(r.p.m) | (change gears)36.47.60.78 | |
Rolling time(S)(m)(H) | 0.1-99.9 | |
Idle time(S)(m)(H) | 0.1-99.9 | |
Hydraulic feed | Max feed speed mm/S | 5mm/s |
Back speed mm/S | 6mm/s | |
Trip(mm) | 0-8mm | |
Main motor power(KW) | 7.5 | |
Hydraulic motor power(KW) | 2.2kw | |
Cooling pump motor power(W) | 90w | |
Machine dimensions (mm) | 1500×1400×1440(mm) | |
Machine Weight(Kg) | 1900kg |
200
Project | Specifications or parameters | |
Model | 200 | |
Max rolling pressure(KN) | 250 | |
Scope of thread rolled | Max outer diameter(mm) | Φ100mm |
Mini outer diameter(mm) | Φ8mm | |
Scope of the rolling wheel | Outer diameter(mm) | Φ160-Φ210mm |
Aperture(mm) | Φ75mm | |
Max width(mm) | 200mm | |
Spindle | Tilt Angle | ±10° |
center distance between the two spindle(mm) | 160-320mm | |
Revolutions(r.p.m) | (change gears)36.47.60.78 | |
Rolling time(S)(m)(H) | 0.1-99.9 | |
Idle time(S)(m)(H) | 0.1-99.9 | |
Hydraulic feed | Max feed speed mm/S | 5mm/s |
Back speed mm/S | 6mm/s | |
Trip(mm) | 0-8mm | |
Main motor power(KW) | 11 | |
Hydraulic motor power(KW) | 5.5kw | |
Cooling pump motor power(W) | 120w | |
Machine dimensions (mm) | 2000×1780×1670(mm) | |
Machine Weight(Kg) | 3000kg |
Working video
http://v.youku.com/v_show/id_XMTMxNDQ4NjAzNg==.html?from=y1.7-1.2

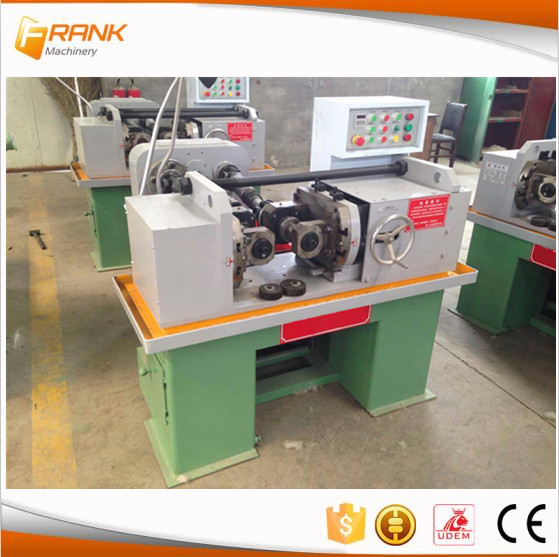

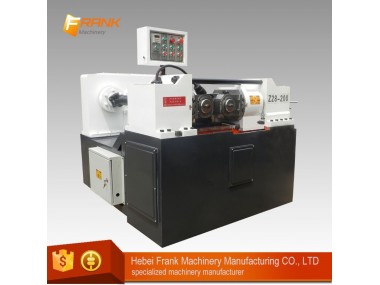

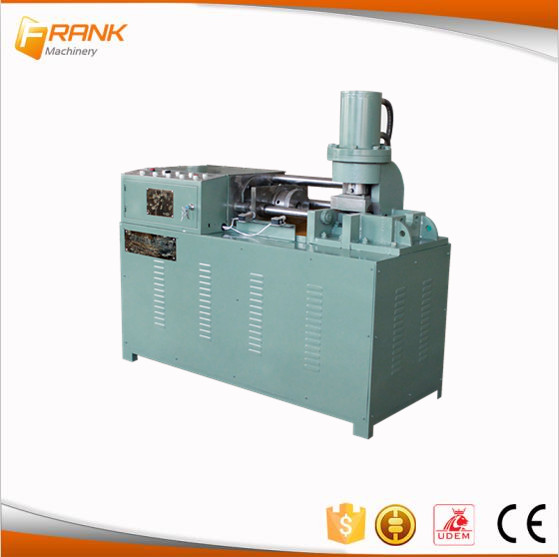

Detailed Images
