電圧: | 440v | 原産地: | 中国(本土) | 銘柄: | ビクター | 条件: | 新しい | モデル番号: | Ls-18daw | 重量: | 2700キロ | 力(W): | 25kw | タイプ: | ワイヤー延伸機 | 保証: | 1- 年間 | 認証: | ce | 次元(L*W*H): | 3000*1800*1800mm | 使用: | ワイヤ | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
包装: | 木製パレット、 untの4機により120fclコンテナ |

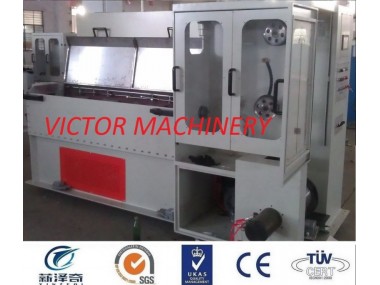

Ls-18Daw stainless steel fine wire drawing machine | |
Electrical control | Plc+ inverter |
Drive control | Double inverter+ payoff block auto。 stop+ power cut brake without wire cut + central control cabinet |
Outlet wire size | ・φ; 0。35mm ~ ・φ; 0。70mm |
Inlet wire size | ・φ;1.00mm ~ ・φ;2.00ミリメートル |
最大。 speed | 500mpm/max |
Mechanical slip ratio | 13%+13%+8% |
Structure design | Use welding steel、 hardness treat 、 high precise treating |
Capstan dia。 | Cone set with Zirconia 専修 hardness hrc 62 |
ダイ。 quantity | 最大。 18nos |
Fix speed capstan dia。 | ・φ; 230 |
Spooling | din300 |
Put the spool | Using screw pushing way、 along with small track。 |
Electrical power force | 18.5Kw+7。5キロワット |
Tension adjust | Using wire storage pulley device |
最大。 load | 100キログラム |
Brake system | 10kg mAgnetic brake |
Lubricant type | Capstan dip into the oil。 |
Transmission type | 8m timing belt |
Traveler type | 5gn micro adjustment motor |
