| 電圧: | 380 | 原産地: | 中国(本土) | 銘柄: | 宝来 | 適用: | 下水管管 | 管材料: | ステンレス | 条件: | 新しい | モデル番号: | hgz2000 | 重量: | 5t | 力(W): | 10キロワット | タイプ: | パイプ製造ライン | 保証: | 5年 | 認証: | naional特許 | 次元(L*W*H): | 4*2*2 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 事業の種類: | メーカー | 状態: | 新しい |
包装
| 包装: | コンテナ |
Product Description

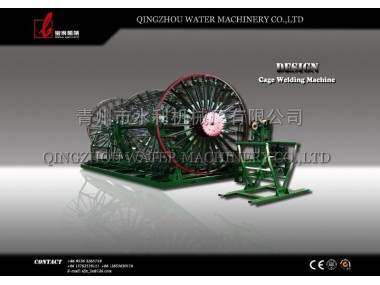

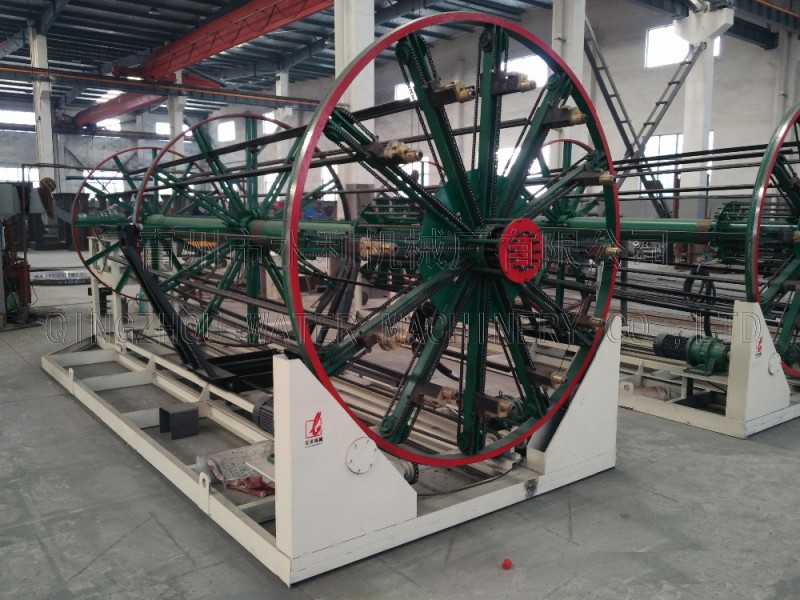

Cage Welding Machine adopts the way of pushing forward, has the functions which change the diameter automatically, can weld the reinforcing frame of cement pipe with the ends of socket and plug type, can weld the reinforcing frame of cement pipe with the ends of flat mouth and the socket angle can be adjustable. The electric system adopts the advanced means of digital control, synchronous control and frequency control, improve the control precision of the machine. Throygh operation ,the machine is steady and reliable in performance , accurate and swift in changing diameter ,simple in use and high in production efficiency. It is the outstanding model in the domestic similar equipment at present and it’s the best choice of the manufacturer of drainage pipeline .
Cage Welding Machine Technical Parameter
Specification and parameter | Parameter values |
Pipe diameter | Φ1000-1650mm for spigot joint Φ1000-2000mm for flush and rabbet joint |
Pipe length | 1000mm-4200mm |
Specification of the steel | Φ4-10mm |
Quantity of longitude steel | 24 pcs |
Span between latitude steel | 20-150mm |
Angle of spigot | 10°-25° |
Rotation speed of master plate | 0-10 r/min |
Power of motor | 0.75+2.2+2.2+4 k w |
Power Transformer of welder |
|
Cage Welding Machine Feature:
1.Steady and reliable in operation;
2.Accurate and swift in changing diameter ;
3.High in production efficiency
4.This machine is the special-purpose welding equipment for making the steel wire cages for the reinforced concrete drainage pipes. It adopts the way of pushing forward ,has the functions which change the diameter automatically
5.Capable of welding the reinforcing frame of cement pipe with the ends of many types,such as flat type, and the flat mouth and socket and angle can be adjustable ,The electric apparatus system adopts the digital control, the synchronous proportion control and frequency conversion speed adjustment .
