• 塩ビ管の生産機-パイプ製造機械
    商品番号: 13301698
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 380v 原産地: 中国(本土) 銘柄: フィート
    管材料: PVC 条件: 新しい モデル番号: sj455
    重量: 10t 力(W): 50hz タイプ: パイプ製造ライン
    認証: ce 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 管材: pvc
    タイプ: パイプの生産

    包装

    包装: 木製のパッケージ

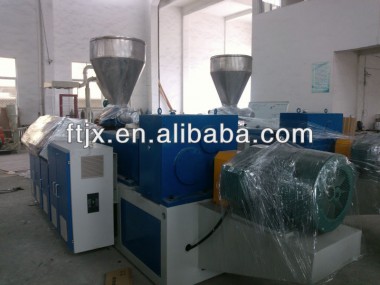

    pvc pipe production machine



    No.

    Machine

    Qty.

    1

    ZJF Feeder

    1set

    2

    SJZ80/156 conical twin-screw extruder & Electrical cabinet

    1set

    3

    SJZ65/132 conical twin-screw extruder & Electrical cabinet

    1set

    4

    Mould for drain pipe



    5

    Vacuum Calibration tank

    1set

    6

    Haul-off (four claws)

    1set

    7

    Planetary cutter

    1set

    8

    Stacker

    1set







    SJZ80/156

    conical twin-screw extruder



    Screw diameter:80/156mm

    Machine barrel and screw material:38CrMoAl nitriding processing

    Effective length of screw:1800mm

    Screw speed:4-32rpm

    Rotating direction:opposing outward

    Main motor power:55KW

    Speed of main motor:1500rpm

    Drawing-in device:feeding frequency 0.75KW

    Vacuum pumping system: 2.2KW

    output:300-400Kg/h

    heating sections and power:machine barrel 4 sections ;36KW

    center height:1000mm

    machine barrel cooling –down system:wind cooling

    control circuit apparatus:main motor adopts DC motor speed regulator;temperature controller adopts Siemens;contactor and circuit breaker adopts Siemens.

    塩ビ管の生産機仕入れ・メーカー・工場 塩ビ管の生産機

    Vacuum

    Water spray

    Moving

    Vacuum pump power:4*2KW



    Water pump power:4KW×2units



    Cycloidal-pin gear speed reducer:1.5KW



    Length:6 meters



    Material :stainless steel

    Pipe scope: φ110-φ250
