• SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理-その他建設資材製造機械
    商品番号: 13298506
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: 万隆 モデル番号: SJ-2000A
    製品名: 数値制御線鋸 メインモータ電源( kw): 7.5 ワイヤーの長さ( mm): 14800
    直径のダイヤモンドワイヤー(ミリメートル): 8.6-10.8 テーブル寸法( l * w) (ミリメートル): 2000*1300 マックス。切断サイズ( mm): 2500 * 2000*1500
    全体寸法( l *ワット* h) (ミリメートル): 6810*5354*3770 水消費( m3/h): 6 おおよその重量( kg): 7500
    ウェブサイト: http://www.wanlongstone.com

    包装

    包装: epeラッピング外機コンポーネント

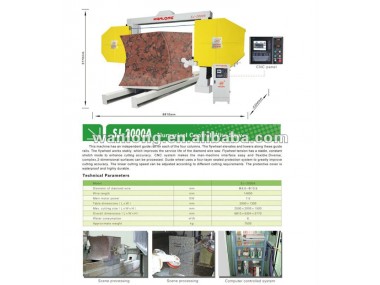

    SJ-2000A numerical control wire saw

    This machine has an independent guide rail on each of the four columns. The flywheel elevates and lowers along these guide rails. The flywheel works stably, which improves the service life of the diamond wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy. CNC system makes the man-machine interface easy and flexible.Diverse.complex.2-dimensional surfaces can be processed. Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy. The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is waterproof and highly durable.

    modelSJ-2000A
    diameter of diamond wiremmΦ8.6- Φ10.8
    wire lengthmm14800
    main motor powerKW7.5
    table diamensions(L*W)mm2000*1300
    max. cutting size(L*W*H)mm2500*2000*1500
    overall dimensions(L*W*H)mm6810*5354*3770
    water consumptionm³/h6
    approximate weightkg7500



    wanlong group:

    Manufacture and use of tools make human beings have the chances to get more natural resources and create a brilliant civilization.

    From the pyramids of ancient Egypt to the ancient Greek Parthenon; from the Coliseum in ancient Rome to China's Great Wall, stone has been integrated into our history for thousands of years, forming many fragments of ancient mankind civilization.

    Today, the stone as a kind of building materials has been more widely applied to various areas of human life, which is an integral part of modern civilization. has dedicated to stone cutting and stone application since 1993.Today, a daily average of 100,000 pieces of diamond tools are exported around the world. Insisting on technological innovation, we continue to create more efficient and more cost-effective diamond tools. We have developed laminated stone panel. Our mission is bridging nature and human culture.



    SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理仕入れ・メーカー・工場 SJ-2000Aダイヤモンドワイヤーソー機械用花崗岩処理



    Diamond tools: 's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 10 years in the line of diamond tools industry, ’s technological innovation improves the cutting efficiency, and save the cost for end-users.

    Stone Industry: developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

    Machinery: Mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 18 years’ practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. machinery will fit the needs of customers with more sophisticated services to fulfill the mission.
