| 原産地: | 中国(本土) | 銘柄: | futong | 条件: | 新しい | モデル番号: | Sj1000+sj2400 | タイプ: | 石造りの打抜き機 | 使用: | 花崗岩 |
包装
| 包装: | nuded貨物 |
、組み立てラインから構成され、 全次のマシン:

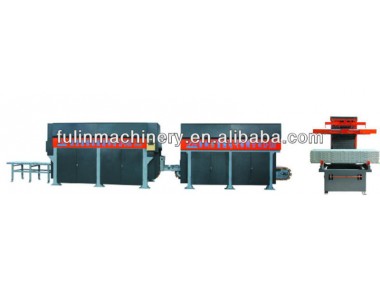

Bridge combi cutting machine #1 model sj600
Cutting width | 600mm-1000ミリメートル | Cutting speed | 1m/分-5M/min |
Cutting thickness | -10mm120ミリメートル | Motor power | 30キロワット |
Blade diameter | 300mm-415ミリメートル | 重量 | 7 tons |
Bridge combi cutting machine #2 model sj2400
Cutting width | 1500ミリメートル-2500ミリメートル | Motor power | 30kw x 2 |
Cutting thickness | 10mm-120mm | Cutting speed | 1m/分-5M/min |
Blade diameter | 300mm-415mm | 重量 | 10 tons |
Example of cutting slab size:
600mm x 600mm 4 pieces 100mm x 100mm 144 pieces
Sj600 and sj2400 overall dimension:1400220x220cm
The New model is fUlly enclosed protective structure 、Adopts plc automatic control system。i t could be automatic ・ continuous used for marble ・ granite cutting dice and edge、 which can effectively improve work efficiency more than 5 times。 we can make the product according to the different specifications ・ requirements of the slab。
特徴:
1) High efficiency、 high degree automatization、 the cutting speed of 5cm thickness is 1.5m/min
2) The cutting trash could be come out by conveyor belt automatically
3) Enclosed safety guard、 more safer、 more reliable、 meets ce requirement
4) High precision、 keep stone slab unmoved、 moving the blade、 two sets hydraulic control system、 guarantee the machine stability
