| 電圧: | 380ボルト440ボルト | 原産地: | 中国(本土) | 銘柄: | ruiguang | 条件: | 新しい | モデル番号: | RGRK-056 | 重量: | モデルに従って | 力(W): | 3150kw | 保証: | 12ヶ月 | 認証: | ce | 次元(L*W*H): | モデルに従って | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 名前: | セメント生産ライン | 容量(t/d): | 72-600 | 電源(kw): | 30-125 | 重量(t): | 66-275 | モデル: | 1.4*33メートル | 直径: | 1.4メートル | 角度の傾き: | 3% | ratation速度: | 0.23-2.26 r/min | ブランド名: | ruiguangライムセメント生産ライン | を使用: | セメント生産ライン |
包装
| 包装: | 標準輸出容器、メインマシン、モーターと小さな部品にパックされた木製ケース |
Cement Production Line Equipment
All Equipment of the cement production line
Stone Crusher: Limestone crusher Limestone is the main raw materials for making cement, so we need the limestone crusher to crush limestone to small particle sizes to make cement.
Raw mill: it is used to crush limestone particles and additive materials
Coal crusher and coal mill: They are used for crushing and grinding coal into powder in cement plant.
Gypsum crusher and mill: In cement plant, they are used for crushing and grinding gypsum into powder.
Cement Ball Mill: They are used to grind cement clinker into powder to make cement.
1.Crushing and Preblending
In cement plant, most of the material need to be broken, such as limestone, clay, iron ore and coal, etc. Limestone is the largest amount of raw material in cement production, after mining the size of limestone is large, with high hardness, so the limestone crushing plays a more important role in cement plant.
2. raw material preparation
In cement plant, producing each 1 ton of Portland cement need grinding at least 3 tons of materials (including raw materials, fuel, clinker, mixed materials, gypsum). Grinding operation consumes power about 60% of total power in cement plants, raw material grinding takes more than 30%, while coal mill used in cement palnt consumes 3%, cement grinding about 40%. So choosing the right grinding mills in cement plant is very important.
3. raw materials homogenization
Adopting the technology of homogenization could rationally get the best homo effect and afford an eligible production to the demand
4. preheating and precalcing
Preheater and calciner is key equipment for precalcing production technique.
5.burning cement clinker in a rotary kiln.
The calcination of Rotary Kiln is a key step of cement production , it makes directly influence on the quality of cement clinker.
6. cement grinding
Cement grinding is used for grinding cement clinker (and gelling agent, performance tuning materials, etc.) to the appropriate size (in fineness, specific surface area, said), optimizing cement grain grading, increasing the hydration area, accelerating the hydration rate to meet the requirements of cement paste setting, hardening.
7.Main technical parameters of Limerotary kiln
No. | Name | Specification and model | Remarks |
1 | Rotary kiln | φ4×60m Main motor: ZSN4-355-092 Power: 315kW Main reducer: YNS-1110-22.4 VBR |
|
2 | Coal mill | φ3×(6.5+2.5)m Motor: YRKK500-8 630KW Reducer: MBY560 |
|
3 | Raw mill | Plan 1 (2 units): φ3.8×8.6m wind swept raw mill Main motor: YR1680-10/1430 1680KW Main reducer: JDX900 | Plan 2 (1 unit): φ4.6×13m middle-discharging drying mill Main motor: YRKK1000-8 3350kW Main reducer: MFY355A Total price: 8,200,000 RMB |
4 | Cement mill | φ4.2×13m Main motor: YRKK900-8, 3150kW (Price: 980,000RMB) Main reducer: MBY140-C (Price: 2,850,000RMB) |
|
5 | Dryer | φ3×20m Motor: YCT355-4B IP44 Reducer: ZSY315-315-I Special |
|

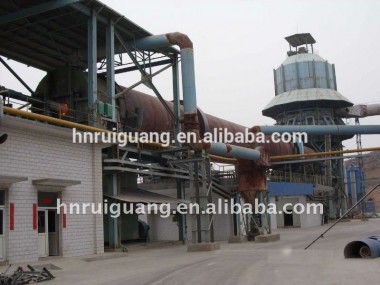

Pictuires of cement Production Line Equipment
