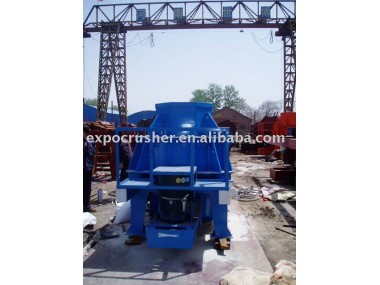

PCL sand making machine
Sand Making Machine (namely PCL vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Making Machine absorbs advanced technology of the same products of Barmac Company of America, now it is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, such materials are with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Features:
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. Function of fine crushing and crude grinding;
4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;
5. More suitable for crushing mid-hardness and hardness materials;
6. Cubic shape of final products, high density of piling up and low iron pollution;
7. More wearable and easier maintenance;
8. Low working noise (lower than 75 decibel) and light dust pollution.
Technical data:
Model | Rotate speed of impeller (r/min) | Max feed size (mm) | Power (kW) | Weight (including motor) (t) | Capacity (t/h) | Overall dimensions (mm) |
PCL-600 | 2000-3000 | 30 | 2×22 | 5.6 | 12-30 | 2800×1550×2030 |
PCL-750 | 1500-2500 | 35 | 2×45 | 7.5 | 25-55 | 3300×1800×2440 |
PCL-900 | 1000-1450 | 40 | 2×55 | 12 | 40-120 | 3750×2120×2660 |
PCL-1050 | 1000-1700 | 45 | 2×110 | 16 | 40-160 | 4480×2450×2906 |
PCL-1250 | 800-1450 | 45 | 2×132 | 22 | 40-300 | 4563×2650×3176 |
PCL-1350 | 800-1193 | 50 | 2×180 | 26 | 50-360 | 5340×2940×3650 |
