原産地: | 中国(本土) | 銘柄: | yujie | モデル番号: | JSS4000 | 排出の方法: | マニュアル/空気圧 | 混合力: | 2*75キロワット | 給水モード: | 水ポンプ | 働きの繰返し周期: | 依存 | 容量の開拓: | 4000l | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 輪郭次元: | 5100*2250*6700ミリメートル | モーター力: | 55kw | 充満容量: | 6400L | 条件: | 新しい | 混合のドラムの速度: | 30.5r/min | 生産性: | 240m3/h | マックス集約サイズ: | 80ミリメートル | 水ポンプ電源: | 3kw | 昇降モータ電源: | 18.5kw | 重量: | 6100キログラム | 放電高さ: | 4.2メートル | 水供給精度: | ± 2% | 構造: | コンパクト | 色: | あなたが要求するよう |
包装
包装: | 標準駐車または あなた の条件として |
JSS4000 240m3/h Gearbox Concrete Mixer/Fully Automatic Concrete Mixer/High Performance Concrete Mixer for Concrete Mixing Plant
Product Description
1-Horizontal double-shaft compulsory concrete mixing machine.
2-Used in big, medium and small factories that produce concrete precast products, it can also be used in projects like highway, bridge, water conservancy, dock and other industrial or civil building.
3-It can be used to mix dry concrete,wet concrete, flowing concrete, lightweight aggregate concrete and all kinds of motar.
In a word, JSS series of concrete mixer is an efficient and widely used concrete mixing equipment.
Advantages Of High Quality Concrete Mixer
1. Big factory with 30 years experience.
2. Patent ALEX END SEAL TECHNOLOGY
3. Noise reduction;
4. Thickness blade and shell to enlength servicing life.
5. More heavy. It means we use more steel to keep it work steady and durable.
6- ISO, SGS, BV, CE certification.
Technical Parameter Of High Quality Concrete Mixer
Item | Unit | JSS1000 Concrete Mixer | JSS4000 Concrete Mixer |
Charging Capacity | L | 1600 | 6400 |
Discharging Capacity | L | 1000 | 4000 |
Productivity | m3 /h | 50~60 | 240 |
Max Size of Aggregate (Pebble/Macadam) | mm | 80 | 80 |
Overall Weight | kg | 10,100 | 15000 |
Discharge Height | mm | 4200 | 4200 |
Mixing Electromotor Power | kw | 18.5x2 | 75x2 |
Water Pump Electromotor Power | kw | 3 | 3 |
Lifting motor Power | kw | 11 | 18.5 |
Water supply accuracy |
| ±2% | ±2% |
Mixing speed | r/min | 25 | 25.5 |
JSS SeriesTwin Spiral Concrete Mixer
Item | Charging Capacity (L) | Discharging Capacity (L) | Productivity (m3/h) | Aggregate Size (cobble/gravel) (mm) | Overall Dimension (LXWXH) (mm) |
JSS500 | 800 | 500 | 25 Min | 80/60 | 4486x30305280 |
JSS750 | 1200 | 750 | 35 Min | 80/60 | 51002250x6700 |
JSS1000 | 1600 | 1000 | 50 Min | 80/60 | 8765x3436x9540 |
JSS1500 | 2400 | 1500 | 75 Min | 80/60 | 36002070X1475 |
JSS2000 | 3200 | 2000 | 100 Min | 80/60 | 35002320X1677 |
JSS3000 | 4800 | 3000 | 150 Min | 80/60 | 39902600X1700 |
JSS4000 | 6400 | 4000 | 200 Min | 120/100 | 44503050X2380
|

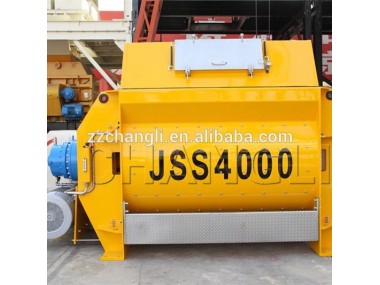

Detail Of Twin Spiral Concrete Mixer
