原産地: | 中国(本土) | 銘柄: | meitong | 輪郭次元: | 5290 × 2133 × 3450 | 容量の開拓: | 0.4 | モーター力: | < 12kw | 充満容量: | 0.48 | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | コンクリートミキサーモデル: | SLJ-5 |
包装
包装: | SEMI-PORT.... |
Bitumen concrete mixer,bitumen mixer,bitumen mixer price

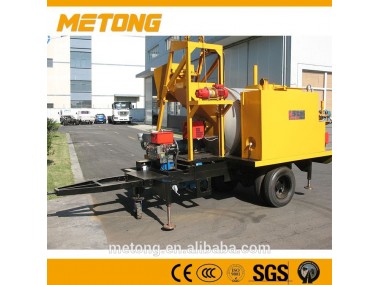

Asphalt mixer
Asphalt mixer is the common pavement equipment for road construction and maintenance. The common ones are mobile double-cylinder asphalt mixer , mobile forced asphalt mixer , placed end product warehouse design asphalt mixer and the like. They are widely used in construction of bridges, highways, tunnels, airports, and municipal works and so on.
Introduction
Asphalt Mixer is an up-grade successfully developed compared to traditionally used mixer in engineering construction industries. It has accurate digital proportional mixer and also has temperature controlling system that enables flexibility in temperature control, proportional capability. The spray pipe of asphalt mixer is much closer to the bottom of its tires, which creates safe working environment, reduction of environmental issues and safe guard of equipment itself.
Fuel system of Asphalt Mixer is the most advanced burner ZHC type oil burner. The product can also burn asphalt as fuel.
Asphalt Mixer has record in its reliability, efficiency, quality and productivity throughout China as well as other countries. It is greatly used in highway road, mine, oil field construction and much more civil construction projects.
Main Parts/ Features of Asphalt Mixer
Classes | Item | Parameter |
General Parameter | Productivity | ≤3-5T/h |
Working Voltage | 380V/50HZ | |
Total Power of Electrical Equipment | ≤12Kw | |
Dimension (mm) | 52902133x3450 | |
Manual Asphalt Speed (L/min) | 30 | |
Agitation Vat | Capacity (m³) | 0.22 |
Temperature () | 120-160 | |
Driving Mode (KW) | 3 | |
Burner (KW) | 240 | |
Asphalt System | Capacity (m³) | 0.48 |
Asphalt Temperature () | 100-160 | |
Asphalt Pump (m³/h) | 3 | |
Pressure (Mpa) | 0.6 | |
Electric System | Generator (KW) | 12 |
