| 運航重量: | 21400キログラム | 原産地: | 中国(本土) | 銘柄: | 世界 | 移動タイプ: | クローラー掘削機 | モデル番号: | W2215-8 | 最大掘削深度: | 6486ミリメートル | 危機重量: | 21400kgs | 定格速度: | 5.2キロメートル/時間 | バケット容量: | 0.9m3 | 最大掘削高度: | 10095ミリメートル | 条件: | 新しい | 認証: | ce、iso | 最大掘削半径: | 9813ミリメートル | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート |
包装
| 包装: | roro、上デッキ |

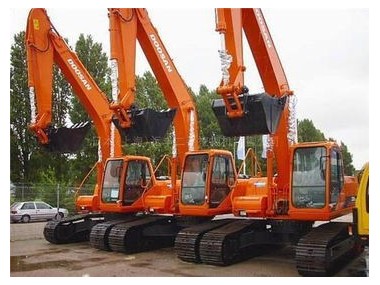

21Ton Excavator W2215 with ISUZU engine
| Engine System | |
| Brand & Origin | ISUZU |
| Model | AA-6BG1TRP-03 |
| Rated Power | 113.2kw/2100rpm |
| Max. Torque | 550N.m/1600rpm |
| Idling Speed | 950rpm |
| Engine Displacement | 6.494L |
| Cylinder No.-Bore/Stroke | 6*105*125 |
| Engine Oil Capacity | 21.5L |
| Fuel Tank Capacity | 415L |
| Fuel Consumption Rate | 237gr/kw.g |
| Working Specifications | |
| Operating weight | 21400kg |
| Bucket capacity | 0.9CBM |
| Max. breakout force | |
| (1)Bucket digging force | 120KN |
| (2)Arm digging force | 94.5kn |
| Max.digging height | 10095mm |
| Max.dumping clearance | 7196mm |
| Max.digging depth | 6486mm |
| Max.vertical wall digging depth | 5903mm |
| Max.digging reach | 9813mm |
| Min.front swing radius | 2853mm |
| Max.pulling force | 220KN |
| Max.travel speed(double modes) | 5.2km/h |
| Max.grade ability | 70% |
| Overall dimensions | |
| Length(with bucket on ground) | 9400mm |
| Width(600mm crawler shoes ) | 2800mm |
| Bucket width | 1150mm |
| Ground length (in transportation) | 9400mm |
| Height(To the top of the boom) | 2937mm |
| Height(To the top of the cab) | 3010mm |
| Counter weight ground clearance | 1094mm |
| Track gauge | 2200mm |
| Tail swing radius | 2708mm |
| Min. ground clearance | 460mm |
| Rotating platform width | 2712mm |
| Counter weight height | 2123mm |
| Crawler teeth thickness | 26mm |
| Reach from swing center to tail | 2708mm |
| Crawler ground length | 3370mm |
| Standard arm length | 2925mm |
| overall length of crawler | 4155mm |
