• ウォークの背後ダブルドラム道路ローラーjintai-33/34/34cモデル熱い販売-ロードローラー
    商品番号: 13256287
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: 金台 モデル番号: 金台33/34
    条件: 新しい 認証: ce 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため



    Product Description

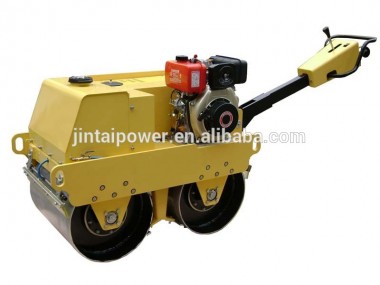

    Walk-behind double drums road roller

    The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn.

     Famous brand engine, excellent performance, easy to start-up;

     imported hydraulic drive system, steppless speed, convenient to change direction;

     Adjusting height mechanism of handrail, storage erectly, easy to transport;

     NSK bearing and MITSUBOSHI V-belt;

     Electromagnetism clutch controlling vibration, easy to operate;

     Plastic treated, anti-rust, anti-corrosion and beautiful.



    Type

    JINTAI33

    JINTAI34

    JINTAI33C

    JINTAI34C

    Run



    Speed

    0—3.5km/h  (Forward and back)

    Turning angle

    15°

    Climbing capacity in theory

    25%

    Compaction



    Static load forward/back

    49.8/51.8N/cm

    50.2/52.2N/cm

    51.5/53.5N/cm

    52/54N/cm

    Nominal amplitude

    0.5mm

    Vibration frequency

    55Hz

    Exciting force

    12kN

    Water tank volume

    25L

    Working



    Drive

         Variable plunger pump ,constant displacement hydraulic motor

    Vibration

     Quantitative  gear pump and motor

    Turning

    Non

      Hydraulic ram

    Non

       Hydraulic ram

    Stop braking

     Mechanical lock bolt

    Engine



    Model

    HONDA, GX390

    178F

    Type

    Gasoline engine,air cooled, 4stroke, OHV, single cylinder

    Diesel engine,air cooled, 4stroke, vertical type, single cylinder

    Power

    13.0hp/3600rpm

    6.0hp/3600rpm

    Fuel tank volume

    6.5L

    5.5L

    Lubricant L

    1.1L

    1.7L

    Fuel consumption

    313g/kWh

    280g/kWh

    Dimension



    Width of steel wheel

    635mm

    Diameter of steel wheel

    350mm

    Tread

    650mm

    Total length(keep handrail level)

    2650mm

    2460mm

    2650mm

    2460mm

    Total width

    680mm

    Total height(keep handrail upright)

    1890mm

    1800mm

    1890mm

    1800mm

    Packing size

    1300720x1980mm

    Working weight

    648kg

    653kg

    670kg

    675kg

    MAX.working weight

    710kg

    713kg

    730kg

    735kg









    Photos

      ウォークの背後ダブルドラム道路ローラーjintai-33/34/34cモデル熱い販売仕入れ・メーカー・工場 ウォークの背後ダブルドラム道路ローラーjintai-33/34/34cモデル熱い販売





    Company Information



    FAQ

    Why choose us?



    1) CE,BV,SGS,ROPS and FOPS verified.



    2) We are a manufacturer with 10-year experience.



    3) Customers-focused,anytime,any question we will reply you ASAP.



    4) All wheel loaders have best premium quality and reasonable price.



    5) Providing a one year warranty for after-sales service.



    6) Easy-demaged components are not included in warranty.



    7) Delivery term:within 15 days after down payment.

     8)integrated customer follow-up system had been built that helping us to provide premium after-sales service,saving your precious time.
