| エミッション規格: | ユーロ3 | 原産地: | 中国(本土) | 銘柄: | runli ブランド shacman水タンカー トラック | モデル番号: | SCS5250GSS水タンカー トラック | 寸法 (L x W x H) (mm): | 9420*2490*3270 | タンク容積: | 15001 - 30000L | エンジン容量: | > 8L | ドライブ車輪: | 4x2 | 認証: | iso ccc | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 伝達タイプ: | 手動 | 条件: | 新しい | 総車高: | 25000 | 燃料: | ディーゼル | 保証: | 一年 | 区域(m)を振りかけること: | 12 - 16m | 色: | 顧客opional | 水タック容量: | 2 トン に 35 トン | 公式ウェブサイト: | www.runlitruck.com | セールス マネージャー: | さん ピン キー | 24時間: | 0086 158 9760 3919 | シャー シ オプション: | 東風、 sinotruck howo 、 beiben福田faw schaman | ドライブ タイプ: | lhd または rhd左または右ハンドル |
包装
| 包装: | 裸パッケージ、 配達の前にワックス、 でお届けroro船やバルク出荷または道路による電車で、 ms小指と直接お問い合わせ下さい。 ホットライン: 008615897603919 |
10Wheels Shacman F2000 Water Tanker Truck 18Tons -20Tons With Spray Pump Hot Sales Call Ms.Pinky 0086 15897603919:
We can Provide you the following Brand Chassis Water Tanker Truck: |
SINO SHACMAN ,DonGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 120HP~ 240HP~380HP
7.Water Truck Loading Capacity: 2Tons to 35Tons .
Specification
Specification of Right Hand Driving Shacman Water Tanker Truck With Pump : |
| Model | SCS5250GSS3 |
| Make | SHACMAN Water Truck |
| Drive type | 6×4 |
| Application | Fuel tanker |
| Weight | |
| GVW (kg) | 25000 |
| Dimensions | |
| Max.length | 9420 |
| Max.width | 2490 |
| Max.heigh | 3270 |
| Front / Rear overhang (Chassis) | 1525/2220 |
| Wheel base(mm) | 2036/1800 |
| Performance | |
| Max.speed (km/h) | 90 |
| Min.turning circle(m) | 24 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 20/12. |
| Max.gradeability(%) | 30 |
| Engine | |
| Make | WEI CHAI |
| Model | WD615.50 |
| Power(kw/HP) | 213/290 |
| Max.Torque (N.m )/rpm | 1160/1100-1600 |
| Displacement (L) | 9.726 |
| Emmission Standards | Euro 2 |
| Transmission | |
| Make | FAST |
| Model | 9JS119 |
| Control type | manual |
| Gear Shift | 9-forward and 1 reverse speeds |
| Clutch | |
| Type | Spring plate diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical pull type, self adjusting |
| Air assisted clutch | |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering | |
| Make | Shashi Jiulong |
| Type | Integral inner circulation |
| power steering | |
| Option | ZF8098 |
| Chassis | |
| Type | Ladder structure with |
| parallel straight | |
| Dimensions (mm) | 243×80×(8+7) |
| Axles | |
| Make | SHAAN'XI HANDE |
| Front axle | 7500kg |
| Rear axle | 13000kg(each other) |
| Double reduction driving axle with | |
| inter-wheel differential and differential lock. | |
| Ratio | 4.8 |
| Tires | |
| Type (Standard) | 12.00-20 |
| Option | 12.00R20/11.00-20/11.00R20/12R22.5 |
| Fuel tank | |
| Tank capacity (L) | 300 |
| Electrics | |
| Type | 24V |
| Starter | 5.58kw(24V) |
| Generator | 1.54kw(28V 55A) |
| Battery | 135Ah |
| Cab | |
| Type | MAN D'LONG F2000, Lengthened flat roof |
| Equipments | 2 rear window, mechanical clerestory, |
| hydraulic suspension cab, A/C, hydraulic chair with seatbelts, one sleeping bed, hydraulic reversal cab, metal bumper, with USB, can play radio with MP3 format | |
| Option | electric windows, electricity heated, GPS or CD, rear-view mirror, Tachograph; car Phone; cruise control system, Central Locks; electricity reversal cab |
| Tanker | |
| Volume(L) | 18000-20000 |
Shacman F2000 DLong Water Truck:
Material: carbon steel, stainless steel, inner anti-corrosion
It is used for garden environment – keeping, municipal maintains, road building large government department.
Rating speed: 1450r/min, flux: 60m3, suction height: 7.5m, sprinkler width is more than 14m; with front spray and back sprinkler, side spray, with working platform at back of truck, with high pressure monitor, cab be adjusted to column, fog.
Equip high quality watering pump.
Detailed Images

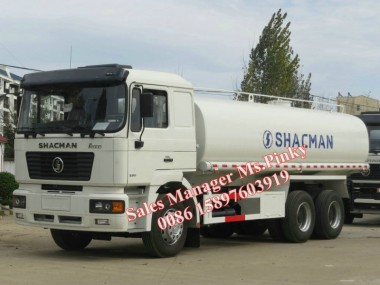

Detail Photos for Shacman Water Truck F2000 : |
