| 試験アークの流れ: | 10-50a | 原産地: | 中国(本土) | 脈拍の頻度: | 100 Khz | 電圧: | 220 | 銘柄: | jyee | モデル番号: | JYMA-50A | アークの流れ: | 10-50a | 力(W): | 5kw | 使用法: | 溶接 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | 保証: | 1年 | 次元: | 485 (l) * 200 (w) * 330 (h) mm | 評価される使用率: | 35 |
包装
| 包装: | 紙や木材 |
Product Description

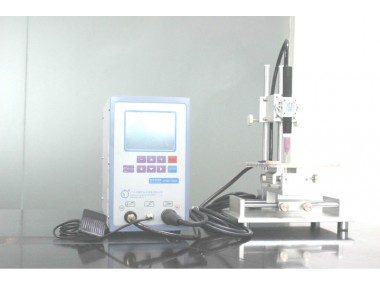

100kHz TIG micro arc welding machine
· with DC and pulse two output modes, has good load adaptability.
· using digital signal processor (DSP) as the control core, with fast dynamic response, high control precision, stability higher advantages.
· using constant current control mode, to ensure the quality of welding stability.
· inverter topology to improve the power factor, power condition became stable.
· with current value transfinite, over and under voltage, overheating fault diagnosis, protection and alarm function.
· the LCD screen can be convenient for parameters setting, with 32 sets of parameters storage function, convenient use of various welding varieties.
· 320240 LCD display interface, high resolution, which can display a variety of content.
? strong external communication function: welding end, fault, counting signal, RS-232 data communication port (optional), convenient for automatic welding.
· fast response. Using MOSFET as the switch tube, 100kHz inverter frequency, electrifying time control cycle peaked at 50 μ s. Pulse output mode, the output pulse frequency can be adjusted continuously in 10 Hz~300Hz, pulse duty ratio is adjustable in the range of 10%~90%.
Model | JYMA-300A |
Input voltage | 3*AC 380V ±10% 50Hz |
Power | 6.84kVA |
Dimention | 485(L)*200(W)*330(H)mm |
Werght | 17kg |
Control mode | Constant current 100kHz |
Voltage with out load | 60V |
Current | 20~300A |
Time setting | 0~9999ms by 1ms |
Current setting | 20~300A |
Frequency setting | 10~300Hz |
Duty cycle | 300A at 35% |
Memory | Flash memory |
Conditions | Tem :+5~+40°C Humidity <90% IP40 D ground |
2,welding samples:
