| 試験アークの流れ: | 20a | 脈拍の頻度: | 50/60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | drk | 条件: | 新しい | モデル番号: | TIG-250D | アークの流れ: | 250a | モータータイプ: | DCモーター | 次元: | 520*200*380ミリメートル | 認証: | 一年 | 使用法: | 溶接ステンレス鋼 | 評価される使用率: | 35% | 色: | ブルー | グレードの保護: | IP21 | 電圧: | ac220v/50 ｈｚ | 定格入力容量: | 4.56KVA | 効率: | 85% | 絶縁グレード: | h | 電流範囲: | 20〜250a | 定格作業電圧: | 20ボルト | 重量: | 8キログラム | キーワード: | tig溶接機 |
包装
| 包装: | カートンパッケージ |
Product Description

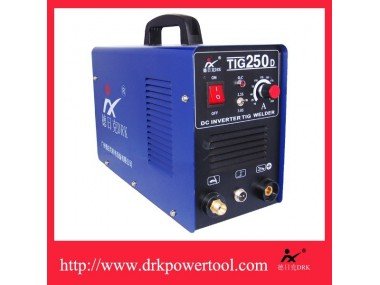

TIG 250 amp Circuit Board Welding Machine characteristics:
1.It adopts PWM control technology,and has concentrated,stable current.
2.It is equipped with LED digital display of current,the current can be preseted,and it is clear and intuitive.
3.It adopts inverter technology twice, so it has stiffness arc,concentrated heat,and strong ability of reverse cleaning.
4.It is small and light,and it is very easy to move it.
Application:
-----It is widely used in welding carbon steel,stainless steel,alloy steel,copper and other non-ferrous metals.
Main technical parameters:
tig welding machine
| Model | TIG-250D |
| Voltage(V) | AC110V/220V,50/60Hz |
| Rated Input Capacity(KVA) | 4.56 |
| Duty Cycle(%) | 35% |
| Power Factor | 0.93 |
| Efficiency | 85% |
| Insulate Grade | H |
| Grade of rotection | IP21 |
| Rated Input Current(A) | 12 |
| Output Current(A) | 250 |
| Current Range(A) | 20~250 |
| No-load Voltage(V) | 55 |
| Rated Work Voltage(V) | 20 |
| Weight(kg) | 8 |
| Dimensions(mm) | 520*200*380 |
Acessories:
tig welding machine
