試験アークの流れ: | 26a | 原産地: | 中国(本土) | 脈拍の頻度: | 50/60 hz | 電圧: | 220ボルト/380ボルト | 銘柄: | sibit | モデル番号: | tig160 | 力(W): | 5.8KVA | アークの流れ: | 20A-160A | 認証: | ce ccc | 使用法: | wsm 160 tig溶接機用販売は良い用金属溶接 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | モータータイプ: | DCモーター | 保証: | 一年 | 次元: | 338 × 179 × 316.5ミリメートル | 評価される使用率: | 60% | アイテム名: | wsm 160 tig溶接機 | 別の名前: | tig160 wsm 160 tig溶接機 | タイプ: | 2in1は単相igbt tig/mma 220ボルト/380ボルトwsm 160 tig溶接機 | tig溶接機: | 高度な採用igbtインバータ技術 | 正味重量: | 7キログラム | vrd: | はい | 標準付属品: | 3メートルトーチでバッグ | 色: | 標準青、その他の色オプション | tig溶接機保証: | 1年 | ホットスタート: | はい |
包装
包装: | 標準wsm 160 tig溶接機輸出包装、各マシンビニール泡でカートン、色カートンとハニカム利用可能 |

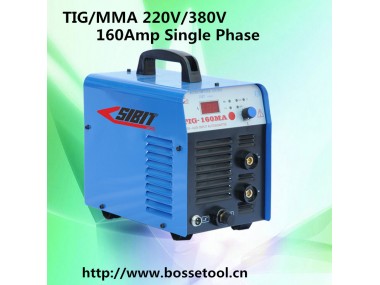

2in1 Single Phase IGBT TIG/MMA 220V/380V WSM 160 A TIG Welding Machine
Bossetool is factory direct Inverter Weldering Machine including ARC welding machine,MIG welding machine,TIG welding machine,MIG/MAG,TIG/MMA multi-function 2 in 1 welding machine and plasma cutting machine in China.Please contact us freely for customized welding machine price,design and specifications.We only supply high quality IGBT welding machines!
A. WSM 160 A TIG Welding Machine Features:
1.Do it yourself in your home with the way you like.
2.IGBT Technology,the core adopts advanced IGBT inverter device.
3.Intelligent Protection when over loading or over heating.
4.Self-adaptive Arc Force,makes welding much easier.
5.Anti-stic,Hot Stat,ensures easy removal of the electrode.
6.VRD,fostering safe welding and longer machine life.
7.Stable & Reliable performance,makes welding enjoyable.
8.Auto compensate voltage fluctuation,takes wider voltage input.
9.Wide input voltage,180V-410V,1PH,special design for unstable power supply countries.
B. WSM 160 A TIG Welding Machine Technical data:
Model Name | TIG160 TIG Welding Machine |
Input Voltage | AC220V/380V 1PH |
Input Power | 5.8KVA |
Max.Output Current | 160A |
VRD | 24V |
Duty Cycle@40 | 160A@20% |
Duty Cycle@25 | 160A@60% |
No Load Voltage | 80V/220V;75V/380V |
Hot Start | YES |
Protection & Insulation | IP21 & F |
Dimensions | 338x179x316.5mm |
Net Weight | 7KG |
