| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | jiazhao | モデル番号: | JZ-8K-3R-P | 重量: | 550キログラム | 次元: | 1.1 × 2.0 × 1.8メートル | 使用法: | マニュアルラウンドパネル自動高周波ブリスター包装機 | 頻度: | 27.12 mhz | 力: | 8kw | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 溶接区域: | 400 × 600ミリメートル | モデル: | JZ-8K-3R (-p) | 発振チューブ: | 発振チューブ | 最大圧力: | 700キログラム | ギャップの電極: | 210ミリメートル | ホーンルート: | 200ミリメートル | アッププレートサイズ: | 400*600ミリメートル | ダウンプレートサイズ: | 600*800ミリメートル | 電圧: | 380ボルト50/60 ｈｚ | 周波数: | 27.12 mhz | 入力電源: | 15kva |
包装
| 包装: | 耐航パッケージ |

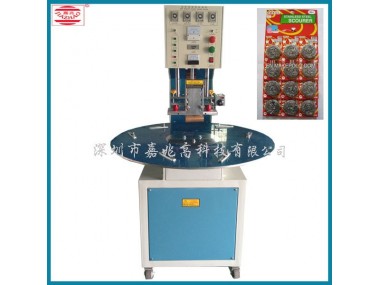

1. Manual Round panel Automatic high frequency blister packing machine applicable products:
Leather: wallet, passport, bags, belts, leather gifts, leather suits, leather goods;
Bags, briefcases, briefcase, travel bag, handbag, laptop bag, etc.;
Primer: notebooks, universal handbooks, industrial and commercial logs, contacts, efficiency, manual, manager, etc.;
Leather cover: tablet leather case (dell, apple, acer, dell, HTC, asus and samsung, hanwang, blackberry, etc.), mobile phone holster (iPhone, samsung, nokia, HTC, MOTOROLA, etc.), leather carrying case, imitation leather skin cover, product (leather box), digital products carrying case, electronic products, communication products, such as carrying case, medical equipment products.
2. Manual Round panel Automatic high frequency blister packing machine Features:
When electric current exceed the limit, the overload current relays automatic protect the Oscillation tube and Rectifier . When Inadequate cooling, it can automatic cut off the power, and to avoid the frenquenc drift and unnecessary parts wastage caused by inappropriate handling.
3. Manual Round panel Automatic high frequency blister packing machine Advantage:
3.1. High-Q Electron tube, Output Stable
3.2. High sensitive spark suppression, preventing the damage to the mold
3.3. Cylinder push-out position device, accurate positioning
3.4. Automatic turntable
3.5. PLC touch screen interface operation
Model | JZ-5K-3RB(Y) | JZ-8K-3RB(Y) | JZ-10K-3RB(Y) |
H.F. Output | 5KW | 8KW | 10KW |
Oscillation tube | 7T85RB | 7T69RB | E3069RB |
Max pressure | 470KG | 700KG | 1000kg |
Gap of electrode | 230mm | 210mm | customized |
Horn route | 200mm | ||
Up plate size | 200*350mm | 400*600mm | 400*600mm |
Down plate size | 400*600mm | 600*800mm | 600*800mm |
Voltage | 220V/380V | 380V 50/60HZ | |
Frequency | 27.12MHZ or 40.68MHZ | ||
Input power | 8.5KVA | 15KVA | 18KVA |
Rectifier | silicon diode | ||
Temperature | 0~200 | ||
Station | Three Station round table | ||
Operate | Pneumatic(Hydraulic) | ||
Welding time | 0~10s Adjustable | ||
Size:L*W*H | 1.1m*2.0m*1.8m | 1.1m*2.7m*1.85m | 1.1m*2.7m*1.85m |
4. Manual Round panel Automatic high frequency blister packing machine Samples and molds:
