| 電圧: | 220V | 原産地: | 中国(本土) | 銘柄: | Smiter | モデル番号: | MIG250T | 重量: | 47kg | 力(W): | 9.2KW | 次元: | 700*400*725mm | 条件: | 新しい | 認証: | セリウム、CCC、ROHS | 使用法: | 自動車、motorcyclのような薄い版の溶接分野の広く使用 | ワイヤー送り速度: | 2.5-13m/min | 証明書: | セリウム、CCC、ROHS | 色: | 黄色 | 商標: | Smiter | タイプ: | IGBT |
包装
| 包装: | 標準的な輸出カートンのカートンのサイズ: 700*400*725mm 20 容器: 137pcs 40 容器: 266pcs |

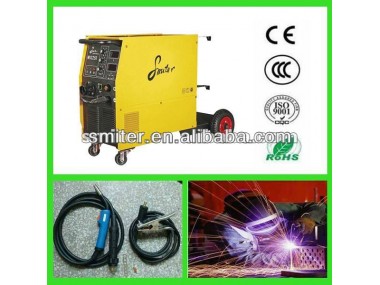

Multi-function Inverter MIG/MMA IGBT welder (MIG250T)
A. Functions and Features
*Adopt IGBT as power service, with unique control mode, high reliability.
* Multi-function gas& gasless MIG welding with ARC function
* High duty cycle, be able to carry out long-time welding
* Closed circuit feedback, constant voltage output, fits for wide voltage range (±15)
* Slow wire feeding during arc starting, removing the tip ball after welding enables easy arc-starting
* Under the control of electronic reactor, stable welding arc, little spattering, deep welding penetration and nice welding bead.
* Widely use in thin plate welding field such as automobile, motorcycle accessories, steel-wood furniture, high steel structure etc
B. Technical Parameters
| Item/Model | MIG250T |
| Input power voltage(V/HZ) | Single phase 220±15% 50/60 |
| Rate input power capacity(KVA) | 9.2 |
| Rate input current/Voltage(A)(V) | 250/26.5 |
| Output current range(A) | 30-250 |
| Diameter of spool(mm) | 270 |
| Duty cycle(%)(25°C) | 60 |
| Full-load efficiency(%) | 85% |
| Power factor( COSφ ) | 0.93 |
| Overall dimension(mm) | 700*400*725mm |
| Insulation class | F |
| Protection class | IP23 |
| Feeding speed(m/min) | 2.5-13 |
| Type of wire feeder | Inside |
| Suitable thickness(mm) | above 0.8 |
| Post-flow time(S) | 1±0.5 |
| Weight(kg) | 47 |
D. Supply
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support.
4. CE and CCC certificate
E. Strict Quality Control:
Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability
F. After-sale Service:
If you have any problem about using the machine, feel free to contact us!
G. Production Line:
