| 原産地: | 中国(本土) | 銘柄: | hongli | 条件: | 新しい | 現在: | 16a | モデル番号: | Hl63-160 | 入力電圧: | 220v、 110v | 次元: | 63、 75、 90、 110、 125、 140、 160 | 認証: | Iso9001: 2008年 | 使用法: | 溶接機機器と継手 | 力: | 2.3キロワット | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 製品名: | 油圧hl160pvcpeパイプ溶接機 | パワー: | 2.3キロワット | 寸法: | 63、 75、 90110、 125、 140、 160 | 用法: | 、peに適してい、 pp、 pb、 pvdf、 pvc、 hdpe |
包装
| 包装: | 合板ケース89*53*47cm200*170*170cm |

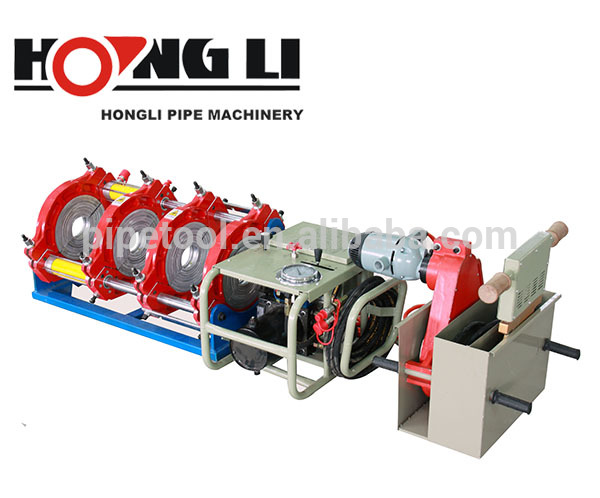

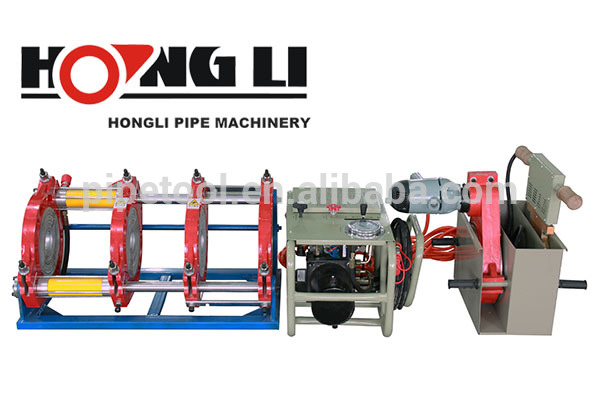

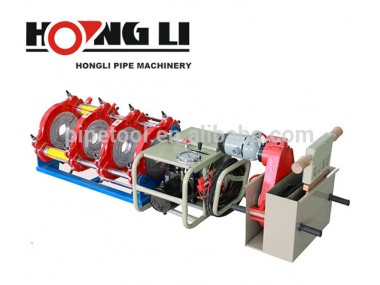

HL160 hydraulic pvc pe pipe welding machine
Manually Operated flash butt welding machine, is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strenghth and performance.
Specifications
1. Product: welding machine for ppr pipe and fittings
2. Material:aluminum casting, 45# steel
3. Certificates:ISO9001:2008, CE
ordering information
| Welding level(¢, mm) | 63, 75, 90, 110, 125, 140, 160 |
| Docking deviation | ≤0.3mm |
| Temperature deviation | ±3°c |
| Total power consumption | 4KW |
| Voltage | 220V |
| Working pressure of hydraulic system | 0-6Mpa |
| Working temperature | 225°c±5°c |
| Environment temperature | -5±45°c |
| Time required to reach soldering temperature | <20min |
| Materials can be welded | PE PP PB PVDF HDPE PVC |
Function and Feature
1. Suitable for DN63-200 PE ,PP,PB,PVDF,PVC,HDPE pipes.

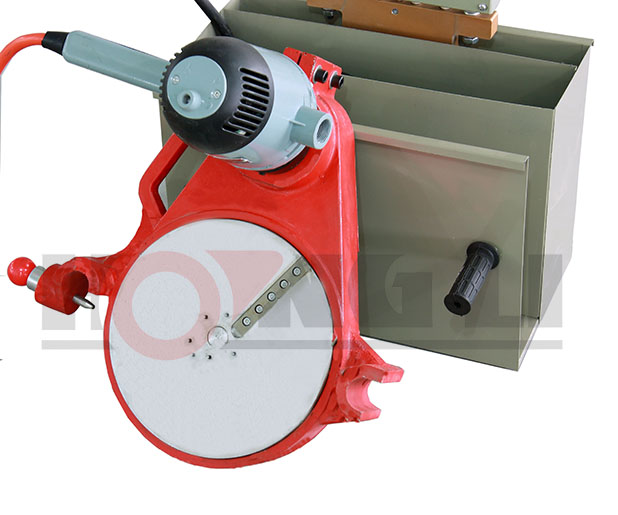

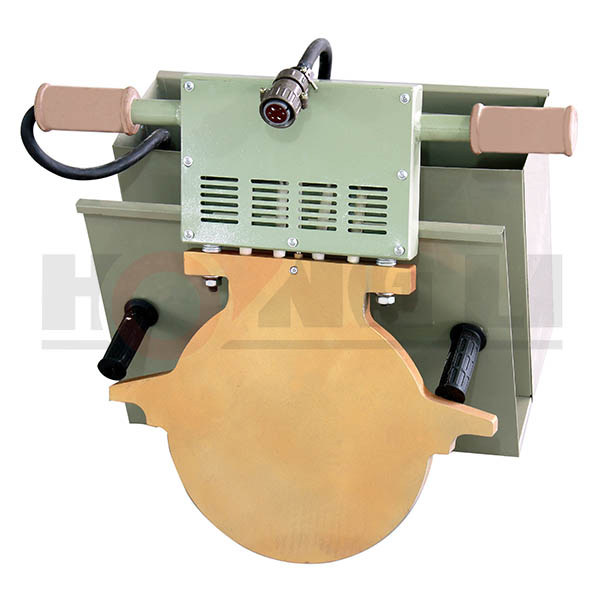

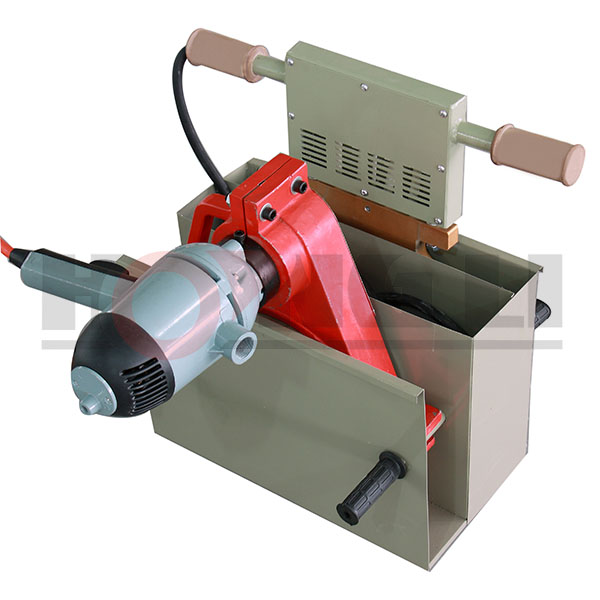

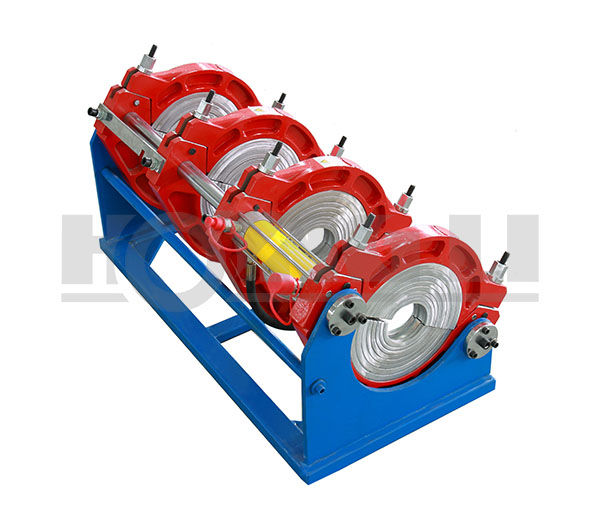

2. It is composed of operating platform, fixture, heating plate and milling cutter.
3. The fixture and operating system are separate, easy to operate under the ditch.
4. The fixture has two ferrules, can locate the pipes more accurately, easy to adjust the bit wrong side.

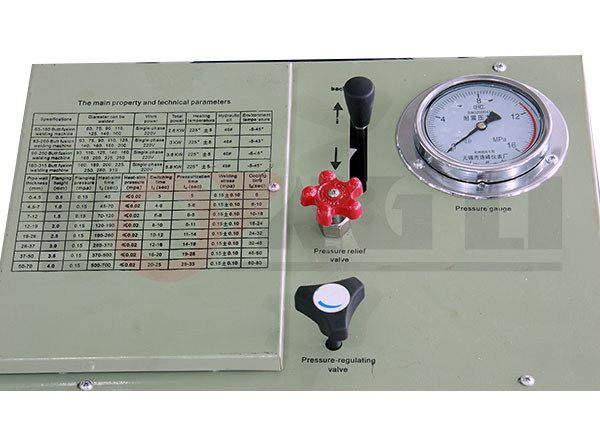

5. Using hydraulic system to control docking pressure, the pressure is more acurate, the operating is more smooth.
6. Using solenoid valve to control the cylinder running, it makes the operating easier and faster.
