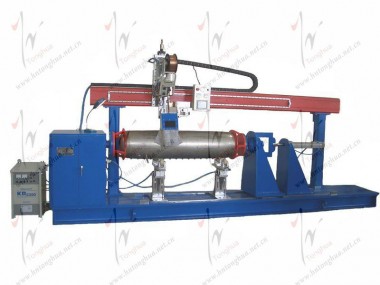

Solar Water Heater Production Line TIG/MIG Circular Welding Machine

This machine mostly used in pressure solar water heater, equiped with panasonic welder.

Function:

This machine mostly used in pressure solar water heater, equiped with panasonic welder. MIG and MAG welding shall be conducted for stainless steel plate, hot rolling plate, cold rolling plate and other metallic materials, The welding plate is 1.0-3.0 mm In thick, with smooth welding seam, signal welding and double forming , There is little transformation of the work parts aferr welding , and corrosion of boundry complies with quality requirements.

This equipment is mainly suitable for ring-seam butt-weld to SS compressing components and various inners concerning solar water heater, enamel water container, electric heater and turkey boiler, and for ring-seam wire-drive and butt-weld to barrel and tank for large industry production.

Feature:

• This computer control of circle seam welder is applicable for both of wire-drive and butt-weld ring seams at M direction.  for metals including stainless steel,carbon steel,copper titanium,and aluminium.

•No deformation,no intergranular corrosion, the seam is excellent, with high automation and easy to operate.

•Welding speed can be adjusted continuosly and steplessly.

•One-side welding, double forming.

•It especially applicable for weld of pressure, buildup and large-diameter water tanks.

• Welding seam beautiful and clear appearance, high strength.

• No deformation,no intergranular corrosion

Solar Water Heater Production Line TIG/MIG Circular Welding Machine

Circular Cover Welding Machine
used to welding the ring-seam on water tank.
1.Tank Diameter: Φ=310-800 mm
2.Work Thickness: 0.31-2.0 mm

3.Effective Length: 3000 mm
4.Rated voltage:380V AC 50 HZ
5.The power rating: 16.2KW+0.75 KW
6.Compressed air pressure: 0.45 Mpa
7.Size: 3250*860*1860 mm

Solar Water Heater Production Line TIG/MIG Circular Welding Machine
