| 評価される流れ: | 40-60A | 原産地: | 中国(本土) | 銘柄: | fastrack | モデル番号: | JC1330 | 入力電圧: | 380ボルト | 次元: | L3650mm * W2070mm * h1400mm | 使用法: | 金属切削 |
包装
| 包装: | パレット、木箱、ベニヤ箱(に応じてクライアントの要件。) |

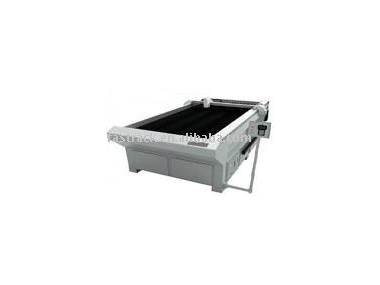

Flame high precision Plasma Cutting Machine JC1330
Features
1.Cutting the metal panel and bottom plate of 3D lighting letters and groove letters ,the precision is high.If the power supply of American Hai Bao is complement,it can reach the low limit of laser machine.
2.Mating with other advertisement equipments(forming machine,pick shearer,carving machine) to form assembly line of the manufacturing advertisement letters,which has co mpletely replaced traditional manual manufacturing form so that the working efficiency has increased dozens of times .
3. Cutting edge is smaller and tidy without any dropouts,so avoiding retrimming.
4. metal plate,aluminium sheet,galvanized sheet,white steel plate,etc.are suited to be used.
5. The cutting speed is higher,the precision is higher,automatic arc striking is realized and is stable performance;the success ratio of arc striking can be over99%.
6. The whole structure is scientific and easier to be operating and very durable.
7. Many standard G code path documents generated by softwate such as Wen Tai (ARTCUT),Northe rn Airline Haier(CAXA),ARTCAM,Type3,etc.can be read via softwate conversion.U disk is used for control system to change for manufacture documents so that the operation is very convenient and quick.
Parameters
1. Specification: L3650mm*W2070mm*H1400mm
2. Biggest working area: L3050*w1230mm
3. Working material: aluminium sheet,matal plate,white steel plate,galvanized sheet
4. Cutting thickness: 0.5mm15mm
5. Cutting speed: 08000mm/min
6. Power: 8.5kw
7. Plasma power: 40A-60A
8. In-put power: 3-phase 380V
9. Frequency: 50HZ
10. File trasmission: USB interface
